Sub parts

Sub parts etc.

  • GReddy Fuel Fitting AN6/AN8

    JAN Code TRUST Code Product Name Price 4991995019404 13903001 GREDDY Fuel Fitting Straight AN6 ¥1,650 (¥1,500 excluding tax) 4991995019411 13903002 GREDDY Fuel Fitting 30° AN6 ¥3,410 (¥3,100 excluding tax) 4991995019428 13903003 GREDDY Fuel Fitting 45° AN6 ¥3,410 (¥3,100 excluding tax) 4991995019435 13903004 GREDDY Fuel Fitting60° AN6 ¥3,410 (¥3,100 excluding tax) 4991995019442 13903005 GREDDY Fuel Fitting 90° AN6 ¥3,410 (¥3,100 excluding tax) 4991995019459 13903006 GREDDY Fuel Fitting 120° AN6 ¥3,740 (¥3,400 excluding tax) 4991995019466 13903007 GREDDY Fuel Fitting 150° AN6 ¥3,740 (¥3,400 excluding tax) 4991995019473 13903008 GREDDY Fuel Fitting180° AN6 ¥3,740 (¥3,400 excluding tax) 4991995019480 13903011 GREDDY Fuel Fitting Straight AN8 ¥1,760 (¥1,600 excluding tax) 4991995019497 13903012 GREDDY Fuel Fitting30° AN8

  • GReddy Fuel Hose AN6/AN8

    JAN Code TRUST Code Product Name Price 4991995665182 13903101 GREDDY Fuel Hose AN6 ¥3,520 (¥3,200 excluding tax) 4991995665199 13903102 GREDDY Fuel Hose AN8 ¥4,180 (¥3,800 excluding tax)

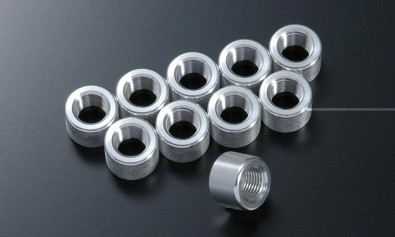

  • Boss set for Aluminum welding

      Boss set for Aluminum welding     Boss used by welding when making aluminum parts one-off. 1/8 PT female is used for attaching radiator pipes, sensors, etc. M8 is used for attaching stays, etc. Both come in sets of 10 pieces. CODE Price (Tax Included) Figure Specifications 12400901 ¥2,750 (¥2,500 without tax) 1 Aluminum Boss for Welding 1/8PT Female 10pcs SET 12400902 ¥4,730 (¥4,300 without tax) 2 Aluminum Boss for Welding Thread Pitch M8×P1.25 Female Outer Diameter 20φ×20mm 10pcs SET

  • GReddy Fire Sleeve

    GReddy Fire Sleeve For the protection of hoses and wiring etc. from heat produced by the engine and exhaust. Product Features Materials:Silicone, Glass Fibre Heatproof temperature:260℃ Momentary heat resistance:1650℃ Black, no logo Product Size CODE Price (Tax Included) Price (Tax Excluded) Compatible Hose #3 ID6 – 1m 11900821 ¥2,200 ¥2,000 Outer diameter approx. φ6, Stainless steel mesh hose #3 #4T ID8 – 1m 11900822 ¥2,530 ¥2,300 Outer diameter approx. φ8, Stainless steel mesh hose #4(Teflon inner) #4G ID11 – 1m 11900823 ¥3,080 ¥2,800 Outer diameter approx. φ11, Stainless steel mesh hose #4 (Rubber inner) #6 ID14 – 1m 11900824 ¥3,520 ¥3,200 Outer diameter approx. φ14, Stainless steel mesh hose #6

  • Universal Power Steering Relocation Kit

    Universal Power Steering Relocation Kit This kit comes with aluminum power steering cooler pipe, hoses and brackets. CODE: 12401000 Price (Tax Included): ¥7,920 [Price before tax: ¥7,200] Remarks Aluminum Power Steering Pipe : Dia 10 Oil Resistant Hose 2m, Bands, Stay

  • Aluminum Elbow (Cast)

    Aluminum Elbow (Cast) These pipes made from cast to create the bends which can not be made by pipe bending machine.These pipes can be used for custom application.   Aluminum Elbow Price List *Bend dimention is the inside R Shape Degree R dimension Outer Diameter CODE Price (Tax Included) Base Price (Excluding Tax) Remarks No.2 90° 5R Dia.50 12400002 ¥5,500 ¥5,000 No.3 90° 5R Dia.60 12400003 ¥5,500 ¥5,000 No.4 90° 25R Dia.50 12400004 ¥5,500 ¥5,000 No.6 120° 30R Dia.50 12400006 ¥5,500 ¥5,000 No.7 120° 20R Dia.60 12400007 ¥5,500 ¥5,000 No.8 90° 35R Dia.60 12400008 ¥5,500 ¥5,000 No.9 90° 35R Dia.70 12400009 ¥6,050 ¥5,500 No.10 90° 25R Dia.80 12400010 ¥6,600 ¥6,000

  • Heat Resistant Cloth

    Heat Resistant Cloth This cloth is used to insulate engine parts from the high temperatures created by the engine and exhaust manifold. PRICE LIST Size CODE Price (Tax Included) Price (Tax Excluded) 200mm×200mm 11900540 ¥1,650 ￥1,500 100mm×1000mm 11900542 ¥2,750 ￥2,500 1000mm×1000mm 11900544 ¥17,600 ￥16,000 1000mm×2000mm 11900546 ¥35,200 ￥32,000 1000mm×5000mm 11900548 ¥55,000 ￥50,000

Washer Tank

  • Washer Tank for R35 GT-R

    Washer Tank for R35 GT-R   For use with the GReddy TYPE29F Intercooler Kit, or GReddy DCT Cooler Kit. It is used as a replacement for the stock washer tank. Product Specifications Capacity : 1.5ℓ Made of aluminium. Has the GReddy logo pressed into the top plate. * A water level sensor cannot be used with this product. Compatibility:GT-R Car Type : R35 Engine Type : VR38DETT Model Year: 07.12 – 16.06 CODE:13526110 Price (Tax Included): ¥19,800 [Base Price: ¥18,000 (Tax Excluded)]   Compatibility:GT-R(Model Year 2017) Car Type : R35 Engine Type : VR38DETT Model Year:July 2017 〜 CODE:13526111 Price (Tax Included): ¥19,800 [Base Price: ¥18,000 (Tax Excluded)]

  • Washer Tank

    Universal Kangaroo Type Product Features A bag-type washer tank ideal for vehicles without space to install a regular washer tank. Product Specifications Capacity: Approx. 1LIncludes nozzle, mounting bracket, tube, and switch   CODE: 13506101Price (tax included): ¥4,400 [Price before tax: ¥4,000]   Universal Washer Tank *This product has been discontinued. Product Specifications Can accommodate 1 or 2 pumpsCapacity: 1.5LGReddy engraving Remarks Comes with rubber gaskets for installation of pumps. (Also comes with one brass plated cap)   CODE: 13506100Price (tax included): ¥4,950 [Price before tax: ¥4,500]

Pipe

  • Universal Stainless Steel Pipe

    Universal Stainless Steel Pipe PRICE LIST Outer Diameter Shape Thickness Length CODE Price (Tax Included) Base Price (Excluding Tax) Dia.50 Straight 1.5mm 1000mm 11001300 ¥7,150 ¥6,500 100R 30° 1.5mm 600mm *1 11001301 ¥7,700 ¥7,000 100R 60° 1.5mm 600mm *1 11001302 ¥7,700 ¥7,000 100R 90° 1.5mm 600mm *1 11001303 ¥7,700 ¥7,000 Dia.60 Straight 1.5mm 1000mm 11001310 ¥8,030 ¥7,300 100R 30° 1.5mm 600mm *1 11001311 ¥8,580 ¥7,800 100R 60° 1.5mm 600mm *1 11001312 ¥8,580 ¥7,800 100R 90° 1.5mm 600mm *1 11001313 ¥8,580 ¥7,800 Dia.70 Straight 1.5mm 1000mm 11001320 ¥10,560 ¥9,600 110R 30° 1.5mm 600mm *1 11001321 ¥11,110 ¥10,100 110R 60° 1.5mm 600mm *1 11001322 ¥11,110 ¥10,100 110R 90° 1.5mm 600mm *1 11001323

  • Universal Aluminum Pipe

    Universal Aluminum Pipe Used for custom piping applications. With a large choice of thicknesses, bend angles and radii in our line-up. Comes as a straight pipe or pre-bent. We use 6063 grade aluminium for our pipes. PRICE LIST Outer DiameterProduct NameCODEPrice (Tax Included)Price (Tax Excluded) 50φ Universal Aluminum Pipe 50φ Straight 11001670 ¥3,740 ¥3,400 Universal Aluminum Pipe 50φ 70R 30°11001671¥4,730¥4,300 Universal Aluminum Pipe 50φ 70R 60°11001672¥4,730¥4,300 Universal Aluminum Pipe 50φ 70R 90°11001673¥4,730¥4,300 Universal Aluminum Pipe 50φ 70R 120°11001674¥4,730¥4,300 Universal Aluminum Pipe 50φ SET11001675¥37,620¥34,200 60φ Universal Aluminum Pipe 60φ Straight 11001680 ¥3,960 ¥3,600 Universal Aluminum Pipe 60φ 80R 30°11001681¥4,950¥4,500 Universal Aluminum Pipe 60φ 80R 60°11001682¥4,950¥4,500 Universal Aluminum Pipe 60φ 80R 90°11001683¥4,950¥4,500

hose

  • GReddy Silicon Hose (3PLY) Black

      PRICE LIST Straight SIZE (Internal) Length CODE Compatible Size Band(Tridon) Compatible Size Band(Dual Bead Type) JAN CODE Main Price (Excluding Tax) price including tax 32φ 60mm 11900841 ♯16 DB-1,DB-2 4991995388197 ¥1,600 ¥1,760 34φ 60mm 11900842 ♯20 DB-2,DB-3 4991995388203 ¥1,400 ¥1,540 45φ 70mm 11900843 ♯28 DB-3,DB-4 4991995388210 ¥1,400 ¥1,540 50φ 70mm 11900844 ♯32 DB-4 4991995388227 ¥1,600 ¥1,760 50φ 70mm 11900844P ♯32 DB-4 4991995388234 ¥1,600 ¥1,760 54φ 60mm 11900845 ♯32 DB-4,DB-5 4991995388241 ¥1,400 ¥1,540 60φ 70mm 11900846 ♯36 DB-5,DB-6 4991995388258 ¥1,800 ¥1,980 60φ 70mm 11900846P ♯36 DB-5,DB-6 4991995388265 ¥1,800 ¥1,980 70φ 70mm 11900847 ♯44 DB-6 4991995388272 ¥2,000 ¥2,200 70φ 70mm 11900847P ♯44 DB-6 4991995388289 ¥2,000 ¥2,200 80φ 80mm 11900848 ♯48 DB-6,DB-7

  • GReddy RADIATOR HOSE KIT

    [ Car Type Line-Up ] -TOYOTA- 86(ZN6), MarkⅡ series(JZX100) -NISSAN- Silvia/180SX((R)PS13,14,15), SKYLINE GT-R(BNR32, BCNR33, BNR34) -SUBARU- WRX(VAB), BRZ(ZC6) -SUZUKI- Swift Sport(ZC33S), ALTO Works(HA36S), JIMNY(JB64W/JB23W), JIMNY SIERRA(JB74W)   Price : JPY10,780-(JPY9,800- tax excluded)

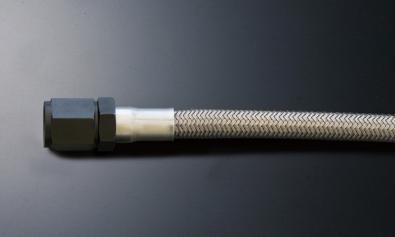

  • Oil Pressure Hose (Teflon)

    OIL PRESSURE TEFLON HOSES Oil Pressure hose for GReddy Turbine Kit For the protection from a high temperature, please use it with GReddy Fire Sleeve. Specifications Union : 1/8PF female straight ×2 Hose : #4 Teflon mesh A hose and the union are caulking.   Size CODE Price (Tax Included) Price (Tax Excluded) 500mm 11900765 ¥9,680 ￥8,800 600mm 11900766 ¥10,230 ￥9,300 800mm 11900768 ¥10,780 ￥9,800   *’Teflon’ is a registered trademark of The Chemours Company FC, LLC.

  • GReddy Silicon Tube

    GReddy Silicon Tube These tubes are specifically designed for air and water lines. They are available in two sizes: 4.5φ and 6φ, and come in blue color with the GReddy logo printed on them. By silicon material, it can clean up dirts with synthetic detergent. Blue Size Length Internal Diameter Outer Diameter Appropriate Band Size CODE Price (Tax Included) Base Price (Excluding Tax) Dia 4.5 1M 4mm 7.5mm Dia 4 Power Band 12400271 ¥990 ¥900 10M 4mm 7.5mm Dia 4 Power Band 12400272 ¥8,800 ¥8,000 Dia 6 1M 5mm 9.5mm Dia 6 Power Band 12400273 ¥1,210 ¥1,100 10M 5mm 9.5mm Dia 6 Power Band 12400274 ¥10,780 ¥9,800

  • Silicon Hose (3PLY)

    Silicon Hose (3PLY) This hose features a sandwich structure of silicon and fiber. It combines Nomex and silicon. Compared to rubber hoses, it offers superior heat resistance, expansion resistance, and corrosion resistance. The GReddy logo is printed on it. SIZE (Internal) Length THICKNESS Compatible Size Band(Tridon) Compatible Size Band(Dual Bead Type) CODE Price (Tax Included) Base Price (Excluding Tax) Dia.32 60mm 3.5mm ♯16 DB-1,DB-2 11900773 ¥1,760 ¥1,600 Dia.34 60mm 3.5mm ♯20 DB-2,DB-3 11900774 ¥1,540 ¥1,400 Dia.45 70mm 3.5mm ♯28 DB-3,DB-4 11900794 ¥1,760 ¥1,600 Dia.50mm 70mm 3.5mm ♯32 DB-4 11900795 ¥1,760 ¥1,600 Dia.54 60mm 3.5mm ♯32 DB-4,DB-5 11900785 ¥1,540 ¥1,400 Dia.60 70mm 3.5mm ♯36 DB-5,DB-6 11900796 ¥1,980 ¥1,800 Dia.70 70mm 3.5mm

  • Oil Resistant Hose

    Oil-Resistant Hose *Only for oil line. Don’t use for fuel line. *Can not be used as a Fuel Line Hose Temperature range: -40℃～+100℃(Oil)、0℃～+50℃(Water)   Size Length THICKNESS Appropriate Band Size CODE Price (Tax Included) Base Price (Excluding Tax) Dia 6 1M 3mm ♯4 12400504 ¥1,100 ¥1,000 3M 3mm ♯4 12400514 ¥2,750 ¥2,500 Dia 9 1M 3mm ♯4 12400409 ¥1,540 ¥1,400 Dia 12 1M 3.5mm ♯6 12400412 ¥2,420 ¥2,200 Dia 15 1M 4mm ♯8 12400415 ¥2,420 ¥2,200 Dia 19 1M 4mm ♯12 12400419 ¥2,420 ¥2,200 Oil Resistant Hose in package Size Length THICKNESS Appropriate Band Size CODE Price (Tax Included) Base Price (Excluding Tax) Dia 6 1M 3mm ♯4 12400504P ¥1,100
  • Nylon Mesh Hose

    Nylon Mesh Hose

    Nylon Mesh Hose Nylon mesh hose is about 60 g lighter per 1M than the conventional stainless mesh hose. Because the outer layer is made of highly flexible and flame retardant nylon material, large load is not applied to the core and the fitting. Even though the hose contacts with the body or the piping, that attack hit resistance is low, making the layout of the oil cooler easier. Size CODE Price without tax Note #6 12402206 YEN 8,000 1m　DISCONTINUED #8 12402208 YEN 8,500 1m #10 12402201 YEN 9,000 1m AN10 specification Material : Chlorinated polyethylene Internal Dia : 14.5mm Outside Dia : 20.3mm Usual heat resistance range : -40℃

HOSE BAND

  • GReddy Hose Band Dual-Bead Boost Clamp

    Size / Price Size Product Number TRUST CODE Compatible Silicone Hose (Straight) Sizes Compatible Silicone Hose (Reducer) Sizes JAN CODE Base Price 26-39mm DB-1 32400601 Dia. 32 ― 4991995389255 ¥980¥1,078 (Tax Included) 30-45mm DB-2 32400602 Dia. 32,34 Dia. 42 4991995389262 39-56mm DB-3 32400603 Dia. 34,45 Dia. 42,45 4991995389200 48-65mm DB-4 32400604 Dia. 45,50,54 Dia. 50,54 4991995389217 58-75mm DB-5 32400605 Dia. 54,60 Dia. 54,60,65 4991995389224 68-85mm DB-6 32400606 Dia. 60,70,80 Dia. 60,65,70,78,80 4991995389231 78-95mm DB-7 32400607 Dia. 80 Dia. 80 4991995389248 100-120mm DB-8 32400608 Dia. 100 Dia. 100 4991995389279 GReddy ONLINE SHOP

  • Power Band

    Power Band Size CODE Price (Tax Included) Price (Tax Excluded) Power Band 4φ 12400704 ¥110 ¥100 Power Band 6φ 12400707 ¥110 ¥100 Power Band 6.5φ 12400706 ¥110 ¥100

  • Hose band

    Hose Band These clamps are made by very reliable TRIDON Company in the USA. These clamps could withstand high temperature and vibrations.   SizePart NumberCODEPrice (Tax Included)Price (Tax Excluded) 6-16mm#412400604¥330¥300 11-18mm#512400605¥330¥300 8-22mm#612400606¥330¥300 11-25mm#812400608¥330¥300 15-27mm#1012400610¥396¥360 15-32mm#1212400612¥396¥360 16-38mm#1612400616¥440¥400 19-44mm#2012400620¥440¥400 27-51mm#2412400624¥440¥400 34-57mm#2812400628¥440¥400 40-63mm#3212400632¥550¥500 46-69mm#3612400636¥550¥500 53-76mm#4012400640¥550¥500 59-82mm#4412400644¥550¥500 66-88mm#4812400648¥550¥500 78-101mm#5612400656¥660¥600 86-108mm#6012400660¥660¥600 64-114mm#6412400664¥660¥600 HOSE BAND in package SizePart NumberCODEPrice (Tax Included)Price (Tax Excluded) 34-57mm#2812400628P¥440¥400 46-69mm#3612400636P¥550¥500 53-76mm#4012400640P¥550¥500 66-88mm#4812400648P¥550¥500 86-108mm#6012400660P¥660¥600

UNION

  • UNION

    UNION Size Shape Specifications CODE Price (Tax Included) Base Price (Excluding Tax) Remarks 1/8PT-1/8PT 1 11900561 ¥770 ¥700 Steal with Unichrome plating 1/8PT-1/8PF 2 11900562 ¥990 ¥900 Brass with Cr plating 1/8PF-Ｍ10 P1.25 3 11900563 ¥770 ¥700 Steal with Unichrome plating 1/8PF-Ｍ12 P1.0 4 (Sale ends when out of stock) 11920060 ¥880 ¥800 Brass with Cr plating 1/8PF-Ｍ12 P1.25 5 For Oil Pressure sensor of SR20, 1JZ, 2JZ 11900575 ¥880 ¥800 Brass with Cr plating 1/8PF-Ｍ12 P1.5 6 Width 19 (Hexagon) 11900568 ¥1,320 ¥1,200 Material : Brass 1/8PF-Ｍ14 P1.5 7 For Oil Pressure sensor of 13BT (Dia 3) 11900576 ¥880 ¥800 Brass with Cr plating Ｍ10 P1.25 male -Ｍ12 P1.0

  • GReddy Plug Union/Plug Bolt

    Plug Union Plug caps for different size hoses. Available in 3 sizes (3mm, 8mm and 10mm). Brass with Cr plating Size Shape Specifications CODE Price (Tax Included) Base Price (Excluding Tax) Remarks Dia 6 1 For hose 11900602 ¥550 ¥500 Brass with Cr plating Dia 8 2 For hose 11900600 ¥550 ¥500 Brass with Cr plating Dia 10 3 For hose 11900601 ¥550 ¥500 Brass with Cr plating   Plug Bolt Available in 4 types of plug bolts. (1/8PT 10mm HEX, tapered 1/8PT HEX with a hole, M12 P1.25 12mm length, and M14 P1.5 12mm length)   Size Shape Specifications CODE Price (Tax Included) Base Price (Excluding Tax) Remarks 1/8PT

  • GReddy Flexible Union

    GReddy Flexible Union This is brass union with Cr plating when bending an air pipe to 90 degrees.The line-up is 6 types according to various purposes. Size Shape Specifications CODE Price (Tax Included) Base Price (Excluding Tax) Remarks Dia5-1/8PT 1 90° 11900620 ¥1,650 ¥1,500 Brass with Cr plating Dia6-1/8PT 2 90° 11900621 ¥1,650 ¥1,500 Brass with Cr plating Dia8-1/8PT 3 90° 11900622 ¥1,650 ¥1,500 Brass with Cr plating Dia8-1/8PT 4 90° steps type 11900623 ¥1,650 ¥1,500 Brass with Cr plating Dia10-1/8PT 5 90° 11900624 ¥1,650 ¥1,500 Brass with Cr plating Dia10-1/4PT 6 90° 11900625 ¥1,650 ¥1,500 Brass with Cr plating

  • HOSE UNIONS

    HOSE UNIONS Size Shape Specifications CODE Price (Tax Included) Base Price (Excluding Tax) Notes Dia 8 Bypass Tube 1 11900630 ¥660 ¥600 Aluminum machining Dia 10 Bypass Tube 2 11900631 ¥660 ¥600 Aluminum machining Dia 16 Bypass Tube 3 11900632 ¥880 ¥800 Aluminum machining Dia 19 Bypass Tube 4 11900633 ¥880 ¥800 Aluminum machining Dia 5 – Dia 5 5 11900640 ¥770 ¥700 Brass with Cr plating Dia5 – Dia6 6 11900644 ¥770 ¥700 Brass with Cr plating Dia 5 – Dia 8 7 11900641 ¥770 ¥700 Brass with Cr plating Dia 6 – Dia 8 8 11900649 ¥880 ¥800 Brass with Cr plating Dia 10 – Dia 14 9

3 Way

  • 3 Way

    Three-Way Union for three-way piping. These items are used to connect 3 joints. Product Name Shape Specifications CODE Price (Tax Included) Base Price (Excluding Tax) Note 3 Way Tees 1 1/8PT×3 T shape 11900700 ¥1,650 ¥1,500 Material : Brass 3 Way Joint Dia 5 2 5 – 5 – 5 φ (Y-type) 11900715 ¥1,430 ¥1,300 Brass with Cr plating 3 Way Joint Different Dia 5/6 – 5/6 – 5/6 (Y-type) 11900720 ¥1,540 ¥1,400 Brass with Cr plating 3 Way Joint in package Product Name Specifications CODE Price (Tax Included) Base Price (Excluding Tax) Note 3 Way Joint Dia 5 Dia 5-5-5 Y shape 11900715P ¥1,760 ¥1,600 Brass with Cr plating

SILICON CAP

  • Silicon Cap

    Silicon Cap   5 pieces Size Internal Diameter Outer Diameter Appropriate Band Size CODE Price (Tax Included) Base Price (Excluding Tax) Dia 4 (5 pieces) 4mm 10mm Dia 4 Power Band 11900950P ¥1,320 ¥1,200 Dia 6 (5 pieces) 6mm 12mm Dia 6.5 Power Band 11900951P ¥1,320 ¥1,200 Dia 8 (5 pieces) 8mm 14mm ♯4 11900952P ¥1,430 ¥1,300 Dia 10 (5 pieces) 10mm 16mm ♯5 11900953P ¥1,430 ¥1,300   3 pieces Size Internal Diameter Outer Diameter Appropriate Band Size CODE Price (Tax Included) Base Price (Excluding Tax) Dia 12 (3 pieces) 12mm 18mm ♯6 11900954P ¥1,430 ¥1,300 Dia 15.5 (3 pieces) 15.5mm 23.5mm ♯8 11900955P ¥1,430 ¥1,300 Dia 19 (3 pieces)
