GReddy Produce by TRUST

COOLING

INTERCOOLERS

  • GReddy INTERCOOLER KIT

    GReddy INTERCOOLER KIT Recommended for sports turbines to fully-tuned cars, this intercooler demonstrates high efficiency cooling. ■ Prioritizes cooling efficiency to maximize charging efficiency, suitable for high-power and high-boost applications. ■ Side tanks and aluminum pipes are buffed for a polished finish. ■ Adopts offset inner fins for the inner fin design, optimizing pressure loss and cooling effect to accommodate high-level boost tuning. For R35GT-R   GReddy INTERCOOLER KIT LS Recommended for boost-up to sports turbo class. An intercooler with excellent cost performance. ■ Achieves a high-level balance between cooling performance and response. ■ Offers superior performance and cost-effectiveness. ■ Side tanks feature a buffed finish. ■ Utilizes lightweight straight-hole
  • no image

    Intercooler repair parts

    Intercooler repair parts Intercooler Spec-LS Repair parts   INTERCOOLER CORE Can be used for vehicle models without intercooler kit settings or when custom-making an intercooler. Adopts the same offset inner fin as GReddy intercooler kits. Product Name H dimension (mm) L dimension (mm) W dimension (mm) Adapted side tank No. CODE Base Price (Excluding Tax) Price (Tax Included) TYPE19F 266 410 100 12000119 ¥94,000 ¥103,400 TYPE23F 302 600 100 No.311〜323 12000123 ¥137,000 ¥150,700 TYPE24F 284 600 66 No.25、26、28、31、35、38、39 12000124 ¥86,000 ¥94,600 TYPE28F 248 600 66 No.32、33 12000128 ¥86,000 ¥94,600 TYPE29F 302 710 100 No.311〜323 12000129 ¥143,000 ¥157,300 TYPE33F 300 525 100 No.311〜323 12000133 ¥97,000 ¥106,700 TYPE34F 123 176 66 12000034
  • GReddy Y-LAYOUT KIT

    GReddy Y-LAYOUT KIT Previous spec design intercooler target use to be 0-400M but considering to hight performance FD3S target has to be circuit. V layout kit is developed by considering power and cooling balance. You don’t have to care about cooling package while you are driving. That means help for your concentration level anyway. Product Features Mount angle Considering the air flow, decided the radiator mount angle. Intercooler layout Piping layout considering to attach the aero bonnet. FULL KIT for the post model includes special elbow which considers passage area. Baffle plate The baffle plate is attached to the radiator and the intercooler. Make efficient air flow comes from bumper
  • GReddy ALUMINUM INTAKE PIPE SET

    GReddy ALUMINUM INTAKE PIPE SET Replacing to aluminum intake pipe instead of wobbly deformation rubber, it is possible to make stabilized air flow into the engine. As for the joint, we use silicon hose for hight protection for any cases like heat-resisting,pressure-resisting,ozone-resisting and deterioration-resisting. Matching list
  • GReddy COMPRESSION TUBE

    GReddy COMPRESSION TUBE Compression tube for 13B Rotary engine. Genuine compression tube is made of plastic, it may break if high pressure is applied by tuning. Buff finish for dress-up. There are for FD3S and for FC3S. MODEL Car type Engine type Price (Tax Included) Base Price (Excluding Tax) CODE Remarks RX-7 FD3S 13B-REW ¥21,780 ¥19,800 12040911 Common to parts of Piping SET. Piping with Dia.80 is available by cutting the Dia.70 part. FC3S 13B-T ¥14,080 ¥12,800 12441000 Pipe Dia.70

OIL COOLER

  • GReddy Oil Block

    Center Bolt   Oil Block STD Dimensions ASSY   Oil Block STD-High Type Dimensions ASSY       JAN Code TRUST Code Product Name Price incl. tax Price excl. tax 4991995019565 12401185 Oil Block STD for Oil Cooler Single Item ¥8,800 ¥8,000 4991995019572 12401186 Oil Block STD ASSY 3/4X16UNF AN8 for Oil Cooler ¥16,280 ¥14,800 4991995019589 12401187 Oil Block STD ASSY 3/4X16UNF AN10 for Oil Cooler ¥16,280 ¥14,800 4991995019596 12401188 Oil Block STD ASSY 3/4X16UNF AN12 for Oil Cooler ¥18,260 ¥16,600 4991995019602 12401189 Oil Block STD ASSY M20XP1.5 AN8 for Oil Cooler ¥16,280 ¥14,800 4991995019619 12401190 Oil Block STD ASSY M20XP1.5 AN10 for Oil Cooler ¥16,280 ¥14,800 4991995019626 12401191 Oil

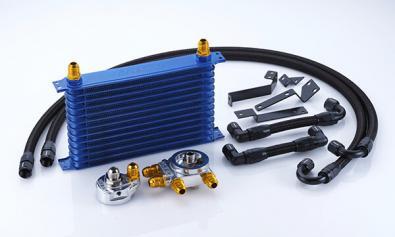

  • GReddy OIL COOLER KIT

    GReddy OIL COOLER SERIES Oil Cooler Kit (Oil Element Relocation Type) Excessive engine temperature rise during sport driving can negatively affect the oil responsible for lubrication and cooling, leading to performance degradation and potential engine failure. GReddy oil coolers maintain stable oil temperatures through high heat dissipation and low pressure loss. This oil cooler has big amount of core which equips offset fin inside of the coer tube. And it helps to enrich the radiation, and at the same time, it prevents the pressure loss. This is the kit which is used for the car which doesn’t have enough clearance near oil filter. This makes the place of oil filter
  • GReddy OIL ELEMENT RELOCATION TYPE

    GReddy OIL ELEMENT RELOCATION TYPE KIT for moving the oil element. Improved maintainability, oil management will be easier. KIT for each car MODEL Car type Engine type Year Element mount position CODE Price (Tax Included) Base Price (Excluding Tax) Remarks ARISTO JZS161 2JZ-GTE 97.08〜04.11 Side of left transmission 12014905 ¥29,700 ¥27,000   SUPRA JZA80 2JZ-GTE 93.05〜02.08 Side of left transmission 12014903 ¥29,700 ¥27,000   SOARER JZZ30 1JZ-GTE 91.05〜01.04 Side of left transmission 12014905 ¥29,700 ¥27,000   MARK II series JZX81 1JZ-GTE 90.08〜92.10 Side of left transmission 12014905 ¥29,700 ¥27,000   JZX90 1JZ-GTE 92.10〜96.09 Side of left transmission 12014905 ¥29,700 ¥27,000 For installation on vehicles from Oct 1992 to Oct 1993,
  • Oil Block Repair parts

    Oil Block Repair parts These are repair parts for GReddy oil cooler kits, but they can also be used when custom-fabricating an oil cooler.We stock oil blocks, center bolts, plug bolts, and unions.
  • GReddy Direct Fitting

          Specification: Straight AN10 CODE: 12402150 JAN CODE: 4991995019336 Price including tax ¥3,740 [Base price: ¥3,400 (tax excluded)]   Specification: 30° AN10 CODE: 12402151 JAN CODE: 4991995019343 Price including tax ¥7,590 [Base price: ¥6,900 (tax excluded)] Specification: 45° AN10 CODE: 12402152 JAN CODE: 4991995019350 Price including tax ¥7,590 [Base price: ¥6,900 (tax excluded)]     Specification: 90° AN10 CODE: 12402153 JAN CODE: 4991995019367 Price including tax ¥7,590 [Base price: ¥6,900 (tax excluded)] Specification: 120° AN10 CODE: 12402154 JAN CODE: 4991995019374 Price including tax ¥8,690 [Base price: ¥7,900 (tax excluded)] Specification: 150° AN10 CODE: 12402155 JAN CODE: 4991995019381 Price including tax ¥8,690 [Base price: ¥7,900 (tax excluded)]
  • GReddy Fitting

    GReddy Fitting These fittings are black anodized and feature the brand logo design. Specifications Shape CODE Price (Tax Included) Base Price (Excluding Tax) Remarks AN8 45° 12402142 ¥4,840 ¥4,400 For GReddy Oil Cooler AN8 Nylon Mesh Hose 90°12402143¥4,840¥4,400For GReddy Oil Cooler AN8 Nylon Mesh Hose 120°12402144¥5,940¥5,400For GReddy Oil Cooler AN8 Nylon Mesh Hose 150°12402145¥5,940¥5,400For GReddy Oil Cooler AN8 Nylon Mesh Hose Straight12402140¥2,640¥2,400For GReddy Oil Cooler AN8 Nylon Mesh Hose   Specifications Shape CODE Price (Tax Included) Base Price (Excluding Tax) Remarks AN10 30° 12402111 ¥8,140 ¥7,400 For GReddy Oil Cooler AN10 Nylon Mesh Hose 45°12402112¥7,040¥6,400For GReddy Oil Cooler AN10 Nylon Mesh Hose 90°12402113¥7,040¥6,400For GReddy Oil Cooler AN10 Nylon Mesh Hose
  • Sensor Terminal

    GReddy Sensor Terminal General oil sensor pick-up adapter that is suitable for Greddy oil block’s M18 screwed hole. 3 pieces of 1/8PT sensor holes are located in the body for 120degree angle distance. Mainly it is effective if there’s no space except around main body of oil line. To enlarge inner diameter of sensor hole, even temperature sensor is projected into oil pipe line, it is designed to obtain sufficient cross section area. The length of sensor is suitable within 30mm long that includes screwed area.(The sensor that has protuberance at the tip of 1/8PT is not possible to attach 2 sensors) In terms of the feature of the products,
  • Sensor Adapter

    Sensor Adapter Adapter which installs various oil temperature sensors from the oil block. Name Purpose CODE Price (Tax Included) Base Price (Excluding Tax) Remarks Sensor adapter M18 Warning Oil cooler Replace KIT, I block Oil cooler STD KIT Available for E block 16400720 ¥1,320 ¥1,200 1/8PT Sensor Adapter 1/8PT Oil cooler Replace KIT, B・ F・ I・ G block Oil cooler STD KIT, E block Available for Sensor attachment 12401105 ¥1,320 ¥1,200 1/8PT (Internal Dia 6)
  • Nylon Mesh Hose

    Nylon Mesh Hose

    Nylon Mesh Hose Nylon mesh hose is about 60 g lighter per 1M than the conventional stainless mesh hose. Because the outer layer is made of highly flexible and flame retardant nylon material, large load is not applied to the core and the fitting. Even though the hose contacts with the body or the piping, that attack hit resistance is low, making the layout of the oil cooler easier. Size CODE Price without tax Note #6 12402206 YEN 8,000 1m DISCONTINUED #8 12402208 YEN 8,500 1m #10 12402201 YEN 9,000 1m AN10 specification Material : Chlorinated polyethylene Internal Dia : 14.5mm Outside Dia : 20.3mm Usual heat resistance range : -40℃
  • GReddy OIL FILTERS

    GReddy OIL FILTERS The oil filter uses double pleated paper, expanding the filtration area while saving space.This is a high-performance oil filter that achieves improved filtration performance and longer life. Product Number Thread size Compatible Engine CODE Price (Tax Included) Base Price (Excluding Tax) OX-01 * 3/4-16UNF TOYOTA 4AG・ 3SG 13901101 ¥2,200 ¥2,000 NISSAN SR (13) Series OX-02 * 3/4-16UNF TOYOTA 1/2JZ Series・ 1G Series 13901102 ¥2,200 ¥2,000 MAZDA SH Series OX-03 * 3/4-16UNF TOYOTA 4AG Series・ 3SGT 13901103 ¥2,200 ¥2,000 NISSAN RB Series・ VG Series OX-04 M20×P1.5 TOYOTA FA Series 13901104 ¥2,200 ¥2,000 NISSAN SR (14/15) Series・ VQ Series・ VR38DETT MAZDA BP Series・ 13B Series・ PE Series・ PY Series

Mission Oil Cooler

  • GReddy ATF COOLER KIT

    GReddy ATF COOLER KIT Cooler kit for cooling Automatic Transmission Fluid (ATF). A lightweight and compact kit using nylon mesh hoses and GReddy fittings. When the transmission of a power-enhanced AT vehicle heats up, it can lead to increased torque converter slip and power loss. This is essential not only for tuned AT vehicles but also for stock AT vehicles driven hard. Hose size Hose length Core type CODE Price (Tax Included) Main Price (Excluding Tax) Remarks AN6 2m 12 ROW 12004803 ¥49,500 ¥45,000 Product Discontinued AN8 2m 12 ROW 12004802 ¥49,500 ¥45,000
  • DCT Cooler Kit

    GReddy DCT COOLER KIT For R35 For R35 GT-R fail safe activates when DCT(dual clutch transmission) oil temperature exceeds 140℃ and then throttle kept closed. Although the stock model is equipped with a water-cooled heat exchanger, it is clearly insufficient for sports driving. We have developed a DCT oil cooler kit that adds an air-cooled oil cooler core inside the left front fender. By using it in conjunction with the stock heat exchanger, it maintains the DCT oil at an optimal temperature even during cold starts, improving the operability and durability of the GR6 transmission from circuit driving to city driving. Product Features Core position : Left Front Fender inside

ALUMIUM RADIATOR

  • GReddy Aluminum Radiator TW-R (RADIATOR TW-R)

    GReddy Aluminum Radiator TW-R Sports radiator adopting all aluminum 2 layer with wide tube core Adopting a 2-layer wide tube is the same capacity as a 3 layer structure. Cooling water capacity more than twice the genuine one, and pressure loss reduced. Additionally, by adopting an all-aluminum construction, weight increase is minimized, making it suitable for both street and circuit use. Include a high pressure radiator cap (with exceptions) Equipped as standard with a high-pressure type radiator cap (TYPE-S for all models) with an opening pressure of 127kPa (1.3kg/cm2). Aluminum product. Adopted buffing. The use of aluminum enhances strength and corrosion resistance. The tank features a buffed finish, giving the
  • GReddy RADIATOR HOSE KIT

    [ Car Type Line-Up ] -TOYOTA- 86(ZN6), MarkⅡ series(JZX100) -NISSAN- Silvia/180SX((R)PS13,14,15), SKYLINE GT-R(BNR32, BCNR33, BNR34) -SUBARU- WRX(VAB), BRZ(ZC6) -SUZUKI- Swift Sport(ZC33S), ALTO Works(HA36S), JIMNY(JB64W/JB23W), JIMNY SIERRA(JB74W)   Price : JPY10,780-(JPY9,800- tax excluded)
  • GReddy Radiator Cap N-type/S-type 1.3k

            N-type TRUST CODE: 13901003 JAN CODE: 4991995383086 Price including tax: ¥2,750 [Price before tax: ¥2,500] S-type TRUST CODE: 13901002 JAN CODE: 4991995383079 Price including tax: ¥2,750 [Price before tax: ¥2,500]   GReddy ONLINE SHOP
  • GReddy WATER TEMPERATURE ADAPTER 86/BRZ

    GReddy Water Temperature Adapter for GR86/86/BRZ Specifically designed for GR86/86/BRZ. Enables safe installation of temperature sensors. Product Features When attempting to install a temperature sensor attachment to the radiator upper hose of GR86/86/BRZ, the hose bends, potentially causing coolant leaks.GReddy Water Temp Adapter is designed to change the genuine upper hose joint to a specialized part and makes the adapter pick-up more secure.Note: Radiator cap not included. Please purchase the GReddy Radiator Cap N Type (CODE:13901003) or reuse the original cap. Product Specifications Sensor size: 1/8PT Material: Aluminum Treatment : Blue alumite   Included Items Dia 8 hose union Plug union (1/8PT) Compatible Vehicles: Toyota 86, GR86 / Subaru BRZ

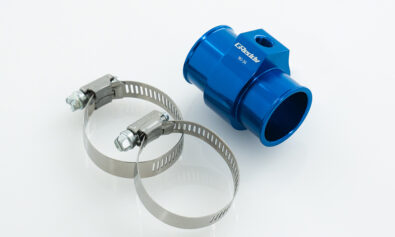

  • RADIATOR HOSE ATTACHMENT (For attaching water temperature sensor)

      This is an attachment with a 1/8PT hole for mounting GReddy temperature gauge and water temperature gauge sensors to the radiator upper hose. Material is Aluminum with blue alumite color. Enjoy coordinating with other GRADY products for the same color.   Size Compatibility CODE Price (Tax Included) Price (Tax Excluded) 26φ For EP91 etc., 4E series, CP21V etc., F6A series, L600S engines etc. 16401626 ¥4,400 ¥4,000 28φ Exclusively for 5E, GA series engines 16401628 ¥4,400 ¥4,000 30φ For 4AG, BP/B6, B16A series engines etc. 16401630 ¥4,400 ¥4,000 32φ For 3S, H22A series engines etc. 16401632 ¥4,400 ¥4,000 34φ For SR (S14/S15), JZ, CA series engines etc. 16401634 ¥4,400 ¥4,000
  • Aluminum Radiator Pipe

    Aluminum Radiator Pipe Highly durable aluminium radiator pipe that is designed to couple water temperature sensor adapter. Pipe diameter and shape is designed to insure sufficient coolant flow and flowing speed. To change stock radiator hose to aluminium pipe, hose swelling by heat can be avoided and coolant flow becomes efficient. It also efficiently decorates your engine room sporty like. It also equips 1/8PT hole to enable to attach GReddy meter series water temperature sensor bolt-on. * For Genuine radiator Pipe Dia MODEL Type Year Engine type CODE Price (Tax Included) Base Price (Excluding Tax) Dia.35 MARKⅡ JZX90 92.10〜96.09 1JZ-GTE 13911221 ¥11,880 ¥10,800 JZX100 96.09〜00.10 1JZ-GTE VVT-i* 13911222 ¥11,880 ¥10,800
  • Radiator Filler Sealing Cap

    Radiator Filler Sealing Cap Used for GReddy Breather Tank. There is no radiator pressure valve and negative pressure valve. When adding a breather tank to a radiator, use a Radiator Cap with a main pressure valve on the breather tank side, and use a Radiator Filler Sealing Cap on the radiator main body side. Type Compatible Vehicles CODE Price (Tax Included) N Toyota, Honda, etc. 12400906 ¥770 (¥700 without tax) S Nissan, Mazda, etc. 12400907 ¥770 (¥700 without tax)
  • Radiator Filler

    Radiator Filler Radiator filler alone for manufacturing the radiator in one-off. It can also be used when manufacturing breather tanks. Type CODE Price (Tax Included) Remarks N Toyota, Honda, etc. with 8φ pipe 12410900 ¥3,850 (Tax Excluded: ¥3,500) *Sales discontinued. S Nissan, Mazda, etc. with 8φ pipe 12400900 ¥3,850 (Tax Excluded: ¥3,500)

LLC

  • GReddy HIGH PERFORMANCE COOLANT PG

    GReddy High Performance Coolant PG It adopts propylene glycol(PG) superior to heat transfer. It adopts propylene glycol(PG) that are superior to heat transfer as main ingredients. It enables water temperature stable and increases cooling performance at severe high revolution area, because it absorbs and expels engine heat quickly. It shows anti-rust, anti-corrosion performance and fits to copper or aluminium radiator. It shows high anti-rust performance under hard sport drive or severe shake or thermal load of high power engine, and anti-corrosion and long life ability fit to aliminium material . It prevents aliminium electric corrosion under high temperature and high pressure, it preserves high performance alimium radiator and alminium parts
  • GReddy High Performance Coolant EG

    GReddy High Performance Coolant EG It adopts ethylene glycol(EG) that are superior to high boiling point, low viscousity anti-freeze ability. It adopts ethylene glycol as proprietary ingredients that is superior to low viscosity and anti-freeze ability. For sports drive of high performance vehicle, PRCB special additive is added to it and it shows conspicuous anti-foaming and anti-rust and anti-corrosion ability, This is the high performance coolant that shows stable ability under stringent circumstances. Contains special additive PRCB. By high anti-foam abiliy, it effectively eliminates foams or air pockets occuring at high revolution of water pump that causes cabitation. To prevent cabitation mitigates engine damage and to eliminate foam enables more

BREATHER TANK

  • GReddy BREATHER TANK

    GReddy BREATHER TANK Air in the coolant inside the radiator can cause overheating. The GReddy Breather Tank is designed to remove air that develops in the coolant. It creates a vortex inside the tank to capture air, using natural centrifugal force to separate the coolant from the air. Only the coolant is returned to the radiator, allowing for more efficient heat exchange in the radiator. Generic type Compatible Models CODE Price (Tax Included) Price (Tax Excluded) Notes Universal Type 12400908 ¥21,780 ¥19,800 Includes radiator filler cap (opening pressure 127kpa・ 1.3kg/cm2)Two types of filler sealing caps includedRadiator hose attachment (sold separately) required for return hose connection Option Parts : Universal union
  • BREATHER TANK OPTIONAL PARTS

    BREATHER TANK OPTIONAL PARTS Size Shape Specifications CODE Price (Tax Included) Base Price (Excluding Tax) Remarks Dia 8 M6×P1.0 (with cooper washer) 1 90° 11900626 ¥1,650 ¥1,500 Brass with Cr plating Dia 8 M8×P1.25 (with cooper washer) 2 90° 11900627 ¥1,650 ¥1,500 Brass with Cr plating
