Intercooler repair parts
Intercooler Spec-LS Repair parts
INTERCOOLER CORE
Can be used for vehicle models without intercooler kit settings or when custom-making an intercooler.
Adopts the same offset inner fin as GReddy intercooler kits.
| Product Name | H dimension (mm) | L dimension (mm) | W dimension (mm) | Adapted side tank No. | CODE | Base Price (Excluding Tax) | Price (Tax Included) |
|---|---|---|---|---|---|---|---|
| TYPE19F | 266 | 410 | 100 | 12000119 | ¥94,000 | ¥103,400 | |
| TYPE23F | 302 | 600 | 100 | No.311〜323 | 12000123 | ¥137,000 | ¥150,700 |
| TYPE24F | 284 | 600 | 66 | No.25、26、28、31、35、38、39 | 12000124 | ¥86,000 | ¥94,600 |
| TYPE28F | 248 | 600 | 66 | No.32、33 | 12000128 | ¥86,000 | ¥94,600 |
| TYPE29F | 302 | 710 | 100 | No.311〜323 | 12000129 | ¥143,000 | ¥157,300 |
| TYPE33F | 300 | 525 | 100 | No.311〜323 | 12000133 | ¥97,000 | ¥106,700 |
| TYPE34F | 123 | 176 | 66 | 12000034 | ¥33,000 | ¥36,300 | |
| TYPE35F | 158 | 230 | 66 | 12000035 | ¥33,000 | ¥36,300 | |
| TYPE36F | 172 | 125 | 66 | 12000036 | ¥33,000 | ¥36,300 | |
| TYPE42F | 140 | 625 | 100 | 12000142 | ¥69,000 | ¥75,900 |

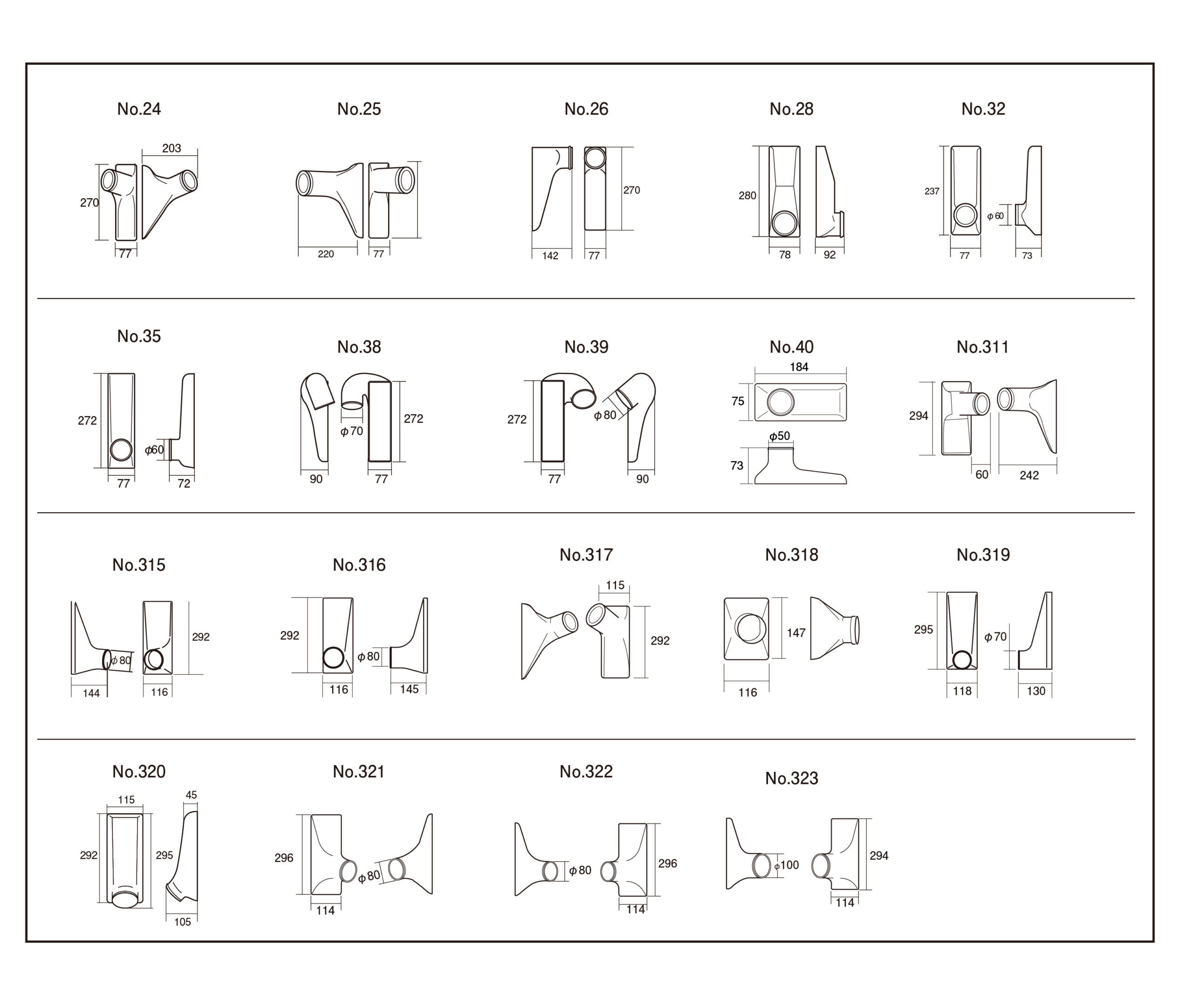

INTERCOOLER SIDE TANK
This side tank is used when producing an inter cooler with a model without a kit or one off. There are a lot of line-up according to the core side size (thickness). GReddy has a lot of know-how for each car model, it can correspond to various types of vehicles.
| Product Name | Diameter | Compatible Core | CODE | Base Price (Excluding Tax) | Price (Tax Included) | Remarks |
| No.24 | Dia.80 | TYPE24 | 12000524 | ¥24,000 | ¥26,400 | 32/33/34 GT-R TYPE24 Kit IN Use |
| No.25 | Dia.80 | TYPE24 | 12000525 | ¥24,000 | ¥26,400 | 32/33/34 GT-R TYPE24 Kit OUT Use |
| No.26 | Dia.70 | TYPE24 | 12000526 | ¥24,000 | ¥26,400 | JZX100 • S14 TYPE24 Kit IN/OUT Use |
| No.28 | Dia.70 | TYPE24 | 12000528 | ¥24,000 | ¥26,400 | JZX90, CN9A, CP9A, CT9A TYPE24 Kit IN/OUT Use |
| No.32 | Dia.60 | TYPE28 | 12000532 | Discontinued | Discontinued | GDB TYPE28 Kit IN/OUT Use |
| No.35 | Dia.60 | TYPE24 | 12000535 | Discontinued | Discontinued | HCR32 TYPE24 Kit IN/OUT Use |
| No.38 | Dia.70 | TYPE24 | 12000538 | ¥24,000 | ¥26,400 | FD3S TYPE24 Kit IN Use |
| No.39 | Dia.80 | TYPE24 | 12000539 | ¥24,000 | ¥26,400 | FD3S TYPE24 Kit OUT Use |
| No.311 | Dia.80 | TYPE23, 29, 33 | 12000811 | ¥27,000 | ¥29,700 | BNR32, BCNR33 TYPE23 Kit OUT Use |
| No.315 | Dia.80 | TYPE23, 29, 33 | 12000815 | ¥24,000 | ¥26,400 | JZA80 TYPE23 Kit IN Use |
| No.316 | Dia.80 | TYPE23, 29, 33 | 12000816 | ¥24,000 | ¥26,400 | JZA80 TYPE23 Kit OUT Use |
| No.317 | Dia.80 | TYPE23, 29, 33 | 12000817 | ¥30,000 | ¥33,000 | BNR32, BCNR33 TYPE23 Kit IN Use |
| No.318 | Dia.60 | TYPE23, 29, 33 | 12000818 | ¥17,000 | ¥18,700 | BNR32, BCNR33 TYPE23 Twin Lower IN Use |
| No.320 | Dia.70 | TYPE23, 29, 33 | 12000820 | Discontinued | Discontinued | JZS147 TYPE23 Kit IN/OUT Use |
| No.321 | Dia.80 | TYPE23, 29, 33 | 12000821 | ¥26,000 | ¥28,600 | BNR32, BCNR33, BCNR34 TYPE29 Kit IN Use |
| No.322 | Dia.80 | TYPE23, 29, 33 | 12000822 | ¥28,600 | ¥26,000 | BNR32, BCNR33, BCNR34 TYPE29 Kit OUT Use |
| No.323 | Dia.100 | TYPE23, 29, 33 | 12000823 | ¥39,600 | ¥36,000 | BNR32, BCNR33, BCNR34 TYPE29 Kit OUT Use |
INTERCOOLER CORE ASSY
- Product Name : Type 41F
- CODE : 12000041
- Price including tax ¥74,800 [Base price: ¥68,000 (tax excluded)]
