GReddy Oil Block

Product features

– Available as a repair part for the GReddy Oil Cooler Kit.

– Can also be used when fabricating a custom oil cooler.

– The design of the oil block with built-in thermostat has been revamped, and the oil flow path has been revised to optimize flow rates at low and high temperatures.

– Allows installation of oil filters with the same thread size as the original.
* Compatible with oil filters with an outer diameter of up to Φ80, and an O-ring inner diameter of at least Φ52 to an outer diameter of up to Φ76.

– The Oil Block STD High Type is a 20mm high mount type of the Oil Block STD. Compared to spacer types, it simplifies installation and reduces weight. Additionally, by making the mounting surface Φ70, it can accommodate special mounting surfaces.
* Except for the lift-up part, it shares the same design as the Oil Block STD. Please use with caution regarding surrounding clearance.

– The thread size is engraved on the center bolt for easy identification at a glance.

Oil Block STD

Oil Block STD High Type

Center Bolt

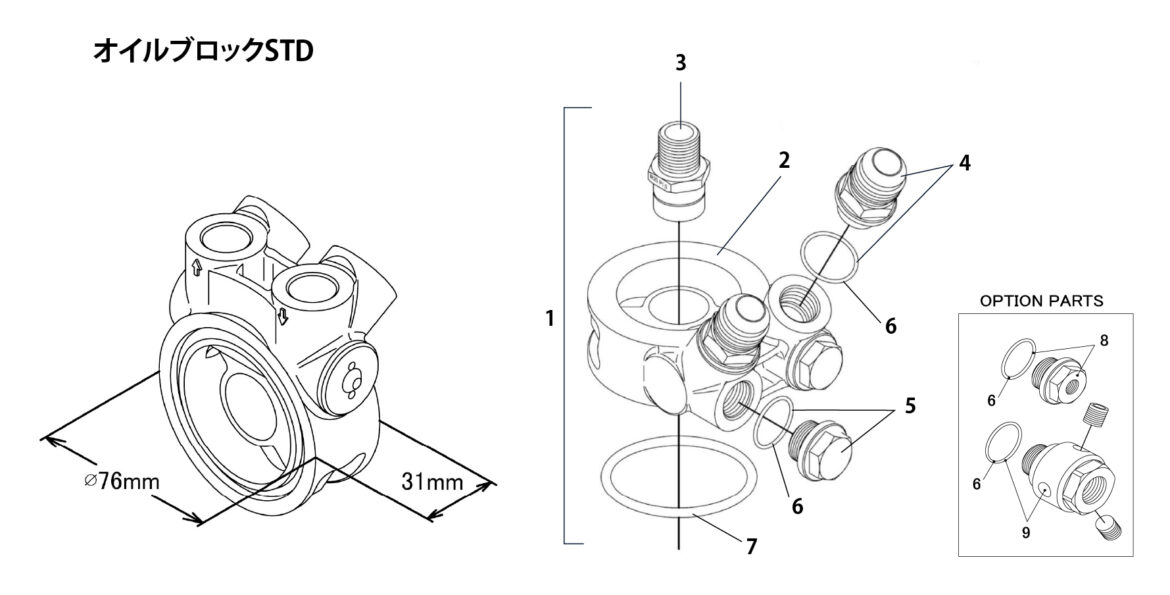

Oil Block STD

No.	JAN Code	TRUST Code	Product Name	Type	price including tax	Price without tax
1	4991995019572	12401186	For oil cooler Oil block STD ASSY	3/4X16UNF AN8	¥16,280	¥14,800
1	4991995019589	12401187	For oil cooler Oil block STD ASSY	3/4X16UNF AN10	¥16,280	¥14,800
1	4991995019596	12401188	For oil cooler Oil block STD ASSY	3/4X16UNF AN12	¥18,260	¥16,600
1	4991995019602	12401189	For oil cooler Oil block STD ASSY	M20XP1.5 AN8	¥16,280	¥14,800
1	4991995019619	12401190	For oil cooler Oil block STD ASSY	M20XP1.5 AN10	¥16,280	¥14,800
1	4991995019626	12401191	For oil cooler Oil block STD ASSY	M20XP1.5 AN12	¥18,260	¥16,600
2	4991995019565	12401185	For oil cooler Oil block STD single item (with o-rings)		¥8,800	¥8,000
3	4991995019688	12401197	Oil block for STD Center bolt	3/4-16UNF – 3/4-16UNF	¥2,200	¥2,000
3	4991995019695	12401198	Oil block for STD Center bolt	M20XP1.5 – M20XP1.5	¥2,200	¥2,000
4		12005110	Oil block for STD Side union with o-ring	AN8 / M18 x P1.5	¥2,200	¥2,000
4		12005103	Oil block for STD Side union with o-ring	AN10 / M18 x P1.5	¥2,200	¥2,000
4		12005112	Oil block for STD Side union with o-ring	AN12 / M18 x P1.5	¥3,300	¥3,000
5		12401121	M18 plug union with o-ring	M18 x P1.5	¥1,320	¥1,200
6		12401101	O-ring (22φ)		¥315	¥300
7		12401103	O-ring (57φ)		¥550	¥500
8		16400720	1/8PT / M18 sensor adapter	1/8PT / M18 x P1.5	¥1,100	¥1,000
9		12401178	Sensor terminal M18		¥2,750	¥2,500

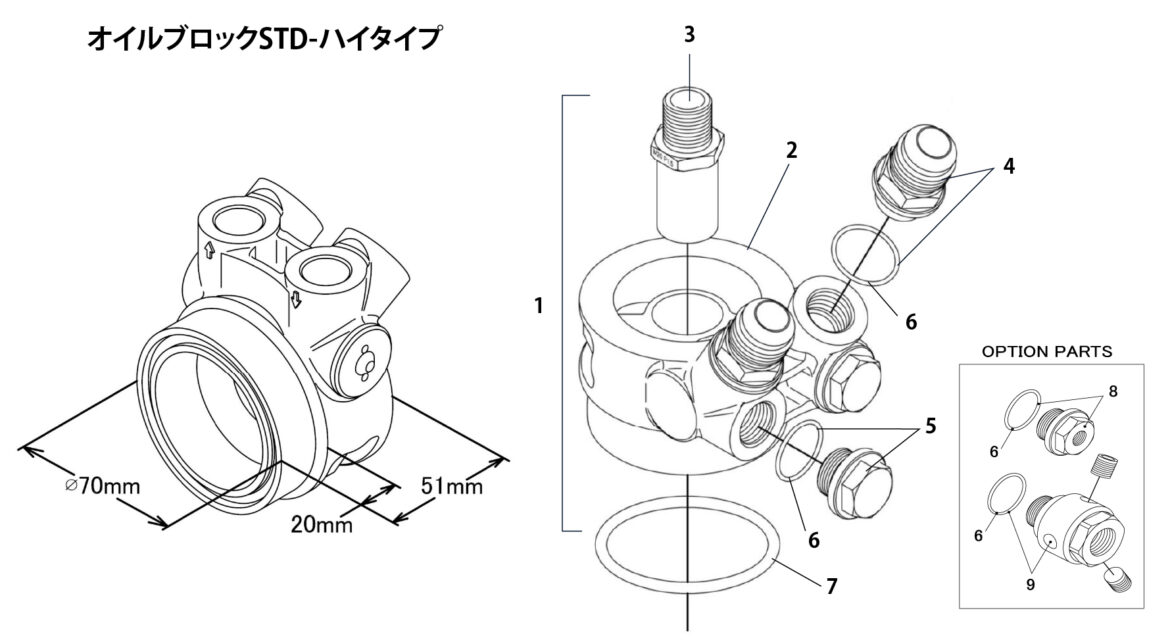

Oil Block STD-High Type

No.	JAN Code	TRUST Code	Product Name	Type	price including tax	Price without tax
1	4991995019640	12401193	For oil cooler Oil block STD-High type ASSY	M20XP1.5 AN8	¥18,920	¥17,200
1	4991995019657	12401194	For oil cooler Oil block STD-High type ASSY	M20XP1.5 AN10	¥18,920	¥17,200
1	4991995019664	12401195	For oil cooler Oil block STD-High type ASSY	M20XP1.5 AN12	¥20,900	19,000 yen
2	4991995019633	12401192	Oil block for oil cooler STD-High type, single item (with o-rings)		¥11,000	10,000 yen
3	4991995019695	12401198	Oil block for STD Center bolt	M20XP1.5 – M20XP1.5	¥2,200	¥2,000
4		12005110	Oil block for STD Side union with o-ring	AN8 / M18 x P1.5	¥2,200	¥2,000
4		12005103	Oil block for STD Side union with o-ring	AN10 / M18 x P1.5	¥2,200	¥2,000
4		12005112	Oil block for STD Side union with o-ring	AN12 / M18 x P1.5	¥3,300	¥3,000
5		12401121	M18 plug union with o-ring	M18 x P1.5	¥1,320	¥1,200
6		12401101	O-ring (22φ)		¥315	¥300
7		12401103	O-ring (57φ)		¥550	¥500
8		16400720	1/8PT / M18 sensor adapter	1/8PT / M18 x P1.5	¥1,100	¥1,000
9		12401178	Sensor terminal M18		¥2,750	¥2,500
