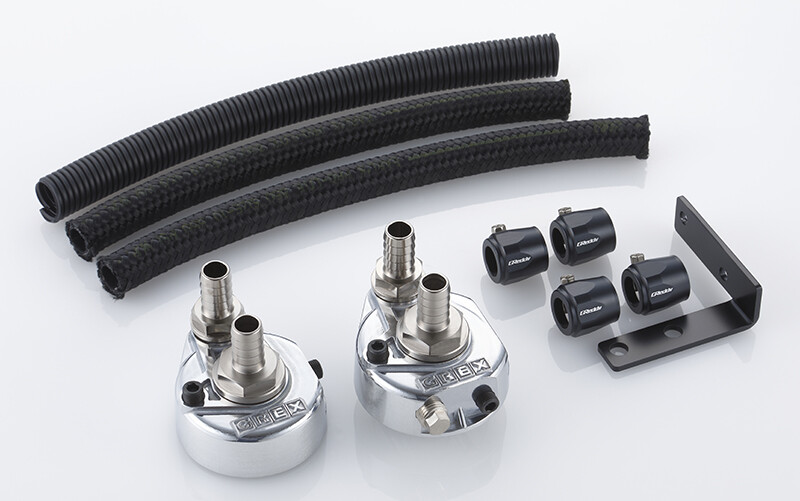

GReddy OIL ELEMENT RELOCATION TYPE
KIT for moving the oil element. Improved maintainability, oil management will be easier.
KIT for each car
| MODEL | Car type | Engine type | Model Year | Element mount position | CODE |
price including tax |
Price (Excluding Tax) | Notes |
|---|---|---|---|---|---|---|---|---|
| ARISTO | JZS161 | 2JZ-GTE | 97.08〜04.11 | Side of left transmission | 12014905 | ¥29,700 | ¥27,000 | |
| SUPRA | JZA80 | 2JZ-GTE | 93.05〜02.08 | Side of left transmission | 12014903 | ¥29,700 | ¥27,000 | |
| SOARER | JZZ30 | 1JZ-GTE | 91.05〜01.04 | Side of left transmission | 12014905 | ¥29,700 | ¥27,000 | |
| MARK II series | JZX81 | 1JZ-GTE | 90.08〜92.10 | Side of left transmission | 12014905 | ¥29,700 | ¥27,000 | |
| JZX90 | 1JZ-GTE | 92.10〜96.09 | Side of left transmission | 12014905 | ¥29,700 |
¥27,000 |
For installation on vehicles from Oct 1992 to Oct 1993, oil filter bracket modification and water line processing are necessary. | |
| JZX100 | 1JZ-GTE | 96.09〜00.12 | Side of left transmission | 12014907 | ¥29,700 | ¥27,000 | ||
| LEVIN / TRUENO | AE86 | 4A-GE | 83.05〜87.05 | Side of left strut house | 12014900 | ¥29,700 | ¥27,000 | |
| 180SX | RPS13 | SR20DET | 91.01〜99.01 | Side of right strut house | 12024907 | ¥29,700 | ¥27,000 | |
| SILVIA | PS13 | SR20DET | 91.01〜93.10 | Side of right strut house | 12024907 | ¥29,700 | ¥27,000 | |
| S14 / S15 | SR20DET | 93.10〜02.08 | Side of right strut house | 12024904 | ¥29,700 | ¥27,000 | For the Engine with the center Bolt M20×P1.5, the center bolt 3/4-16UNF of the oil filter is necessary. | |
| SKYLINE | HCR32 | RB20DET | 89.05〜93.08 | Side of right strut house | 12024901 | ¥29,700 | ¥27,000 | |
| ECR33 | RB25DET | 93.08〜98.06 | Side of right strut house | 12024903 | ¥29,700 | ¥27,000 | ||
| ER34 | RB25DET | 98.06〜01.06 | Side of right strut house | 12024910 | ¥29,700 | ¥27,000 | ||
| SKYLINE GT-R | BNR32 | RB26DETT | 89.08〜95.01 | Side of right strut house | 12024902 | ¥29,700 | ¥27,000 | |
| BCNR33 | RB26DETT | 95.01〜98.12 | Side of right strut house | 12024906 | ¥29,700 | ¥27,000 | ||
| BNR34 | RB26DETT | 99.01〜02.08 | Side of right strut house | 12024912 | ¥29,700 | ¥27,000 | ||
| STAGEA | WGNC34 | RB25DET | 96.09〜01.10 | Side of right strut house | 12024910 | ¥29,700 | ¥27,000 | |
| INTEGRA | DC2 | B18C | 93.05〜01.07 | Side of Intake Manifold | 12054901 | ¥29,700 | ¥27,000 | For the Engine with the center Bolt M20×P1.5, the center bolt 3/4-16UNF of the oil filter is necessary. |
| EUNOS ROADSTAR | NA6CE | B6 | 89.06〜93.08 | Side of the alternator | 12044901 | ¥29,700 | ¥27,000 | For the Engine with the center Bolt M20×P1.5, the center bolt 3/4-16UNF of the oil filter is necessary. |
| RX-7 | FC3S | 13B-T | 85.10〜92.10 | Side of left strut house | 12044900 | ¥29,700 | ¥27,000 | For the Engine with the center Bolt M20×P1.5, the center bolt 3/4-16UNF of the oil filter is necessary. |
| FD3S | 13B-REW | 91.11〜02.08 | Side of left strut house | 12044902 | ¥29,700 | ¥27,000 | Cannot be installed on vehicles with I/J holder For engines with center bolt M20×P1.5, an oil filter with center bolt size 3/4-16UNF is required. |
GReddy OIL ELEMENT REPLACE KIT GENERAL
| Center Bolt Size | Detail | CODE | price including tax | Price (Excluding Tax) | Notes |
|---|---|---|---|---|---|
| 3/4-16UNF | Nylon mesh hose 1000mm, Econo fitting ×4, Attachment | 12004900 | ¥29,700 | ¥27,000 | |
| M20×P1.5 | Nylon mesh hose 1000mm, Econo fitting ×4, Attachment | 12004901 | ¥29,700 | ¥27,000 | ※1 For the engine with a center bolt M20×P1.5, an oil filter cartridge with a center bolt size 3/4-16UNF is necessary. |
