Compatible with ISO CAN / SUZUKI CAN!
Sirius OBD MOVIE
Sirius Vision OBD Set
GReddy Sirius Vision

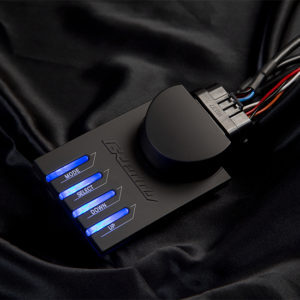

GReddy Control Unit

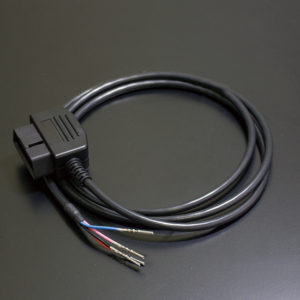

OBD Harness
Product Feature
Adopts a self-luminous transmissive display using inorganic EL. It’s a meter set that can be easily connected to the vehicle’s diagnostic connector (OBD II) without sensors.
By using the OBD harness, it displays up to 2 items of information from 6 options: boost (intake manifold pressure), water temperature, intake air temperature, engine speed, vehicle speed, and voltage.
- For 12V vehicles only
- Compatible with ISO CAN / SUZUKI CAN communication
- Sensor can be used in conjunction (sold separately)
*Some items may not be displayed depending on the vehicle. Please refer to the vehicle-specific compatibility chart for details. [Set Contents] Sirius Vision, control unit, OBD harness, power harness, dedicated meter stay, meter branch harness
*You need to connect the wiring on the control unit side (constant power, IG power, illumination, ground). [Main Features]
- Capable of displaying up to 2 items by setting bar display and digital display to different items
- Equipped with peak memory function that remembers and displays maximum values
- Equipped with dimmer function that changes screen brightness according to headlight ON/OFF
- Equipped with appealing warning function using indicators during warnings
- Dedicated meter stay included / Meter branch harness included
Important Notice Before Purchase
Customers who own GReddy SIRIUS series (Unify/Vision/Control Unit) with serial numbers prior to GSI-8000 may need to update their GReddy SIRIUS series. Please check from the following site.
GReddy SIRIUS Update Site ISO CAN Compatibility Chart SUZUKI CAN Compatibility Chart
[For ISO CAN]
CODE: 16001750
JAN CODE: 4991995197249
Price including tax ¥110,000 [Base price: ¥100,000 (tax excluded)]
[For SUZUKI CAN]
CODE: 16001751
JAN CODE: 4991995197294
Price including tax ¥110,000 [Base price: ¥100,000 (tax excluded)]
Available for purchase at the GReddy ONLINE SHOP
Sirius Unify OBD Set Boost Gauge/Water Temperature Gauge

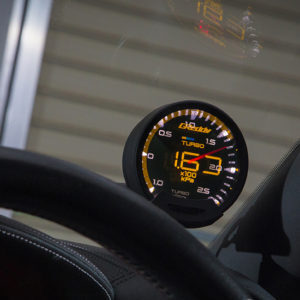

GReddy Sirius Unify
GReddy Control Unit
OBD Harness
Product Feature
A next-generation additional meter that combines the self-luminous transmissive ‘Sirius Vision’ with the pointer-type ‘Sirius Meter’. The OBD set lineup includes turbo and water temperature gauges. It’s a meter set that can be easily connected to the vehicle’s diagnostic connector (OBD II) without sensors. By using the OBD harness, in addition to pointer operation, it displays up to 2 items of information from 6 patterns: turbo, water temperature, intake air temperature, engine speed, vehicle speed, and voltage on the display.
- For 12V vehicles only
- Compatible with ISO CAN / SUZUKI CAN communication
- Sensor can be used in conjunction (sold separately)
[Available Information]
Pointer section: Turbo (intake manifold pressure) or water temperature
Display section: Any 2 items from turbo (intake manifold pressure), water temperature, engine speed, vehicle speed, intake air temperature, voltage
*Some items may not be displayed depending on the vehicle. Please refer to the vehicle-specific compatibility chart for details.
[Set Contents] Sirius Unify (Turbo gauge/Water temperature gauge), control unit, OBD harness, dedicated meter stay, meter branch harness
*This kit does not include a boost sensor or temperature sensor.
*You need to connect the wiring on the control unit side (constant power, IG power, illumination, ground).
- Equipped with peak memory function that remembers and displays maximum values
- Equipped with dimmer function that can change screen brightness separately according to headlight ON/OFF
- Warning function that appeals with white LED during normal operation and red LED during warnings
- Dedicated meter stay included / Meter branch harness included
Important Notice Before Purchase
Customers who own GReddy SIRIUS series (Unify/Vision/Control Unit) with serial numbers prior to GSI-8000 may need to update their GReddy SIRIUS series. Please check from the following site.
GReddy SIRIUS Update Site ISO CAN Compatibility Chart SUZUKI CAN Compatibility Chart
Sirius Unify OBD Set Boost Gauge
[ISO CAN]
CODE: 16001760
JAN CODE: 4991995197270
Price including tax ¥134,200 [Base price: ¥122,000 (tax excluded)]
[SUZUKI CAN]
CODE: 16001762
JAN CODE: 4991995197324
Price including tax ¥134,200 [Base price: ¥122,000 (tax excluded)]
Sirius Unify OBD Set Water Temperature Gauge
[ISO CAN]
CODE:16001761
JAN CODE:4991995197287
Price including tax ¥134,200 [Base price: ¥122,000 (tax excluded)]
CODE: 16001763
JAN CODE: 4991995197331
Price including tax ¥134,200 [Base price: ¥122,000 (tax excluded)]
Available for purchase at the GReddy ONLINE SHOP
Sirius Meter OBD Set Boost Gauge/Water Temperature Gauge

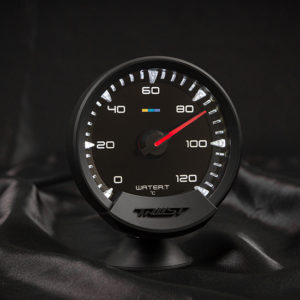

GReddy Sirius Meter
GReddy Control Unit
OBD Harness
Product Feature
The meter features a three-dimensional face that balances design and visibility. It’s a pointer meter with excellent response. The OBD set lineup includes turbo and water temperature gauges. It’s a meter set that can be easily connected to the vehicle’s diagnostic connector (OBD II) without sensors.- For 12V vehicles only
- Compatible with ISO CAN / SUZUKI CAN communication
- Sensor can be used in conjunction (sold separately)
*This kit does not include a boost sensor or temperature sensor.
*You need to connect the wiring on the control unit side (constant power, IG power, illumination, ground). [Main Features]
- Equipped with peak memory function that remembers and displays maximum values
- Warning function that appeals with white LED during normal operation and red LED during warnings
- Equipped with dimmer function that changes screen brightness according to headlight ON/OFF
- Dedicated meter stay included / Meter branch harness included
Important Notice Before Purchase
Customers who own GReddy SIRIUS series (Unify/Vision/Control Unit) with serial numbers prior to GSI-8000 may need to update their GReddy SIRIUS series. Please check from the following site.
GReddy SIRIUS Update Site ISO CAN Compatibility Chart SUZUKI CAN Compatibility Chart
Sirius Meter OBD Set Boost Gauge
[ISO CAN]
CODE: 16001755
JAN CODE: 4991995197256
Price (tax included) ¥66,000 [Price before tax: ¥60,000]
[SUZUKI CAN]
CODE: 16001757
JAN CODE: 4991995197300
Price (tax included) ¥66,000 [Price before tax: ¥60,000]
Sirius Meter OBD Set Water Temperature Gauge
[ISO CAN]
CODE: 16001756
JAN CODE: 4991995197263
Price (tax included) ¥66,000 [Price before tax: ¥60,000]
[SUZUKI CAN]
CODE: 16001758
JAN CODE: 4991995197317
Price (tax included) ¥66,000 [Price before tax: ¥60,000]
Available for purchase at the GReddy ONLINE SHOP
SIRIUS OBD Rental Service
We offer a free SIRIUS rental service for vehicles where the compatibility of our SIRIUS OBD harness has not been confirmed.
Please understand that this service is for confirming ‘whether communication works when connected to vehicles not listed in the vehicle-specific compatibility chart or unconfirmed vehicles,’ and is not a service for checking usability or product characteristics.
