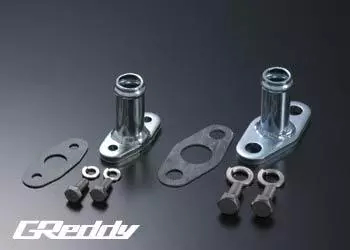

Turbine Oil Return Tube

Tube with a flange for attaching an oil return pipe to GReedy turbine. It is made of steel and galvanized.
PRICE LIST
Product Name | Specification | CODE | PRICE without tax | Remarks |
Dia 16 with Flange (small) | Oil Return Flange small (L=45㎜) | 11920090 | YEN 3,500 | TD025, TD04(H) TD05(H), TD06S20G TD06SH20G ※1 |
Dia 19 with Flange (small) | Oil Return Flange small (L=45㎜) | 11900880 | YEN 3,500 | |
Dia 16 with Flange (Big) | Oil Return Flange big (L=45㎜) | 11920091 | YEN 3,500 | T67, TD06SH25G, TD07S, T78, T88, T88H ※1 |
Dia 19 with Flange (big) | Oil Return Flange big (L=45㎜) | 11900881 | YEN 3,500 |
Gasket for Trubine oil return
Special gasket for mounting GReddy oil return flange
There are 2 types according to the size of the oil return.
※ Not reuse parts
■Price List
Size | Dimension | CODE | Price (Tax excl.) | Remarks |
Small | 1 | 11900200 | YEN 200 | TD025, TD04(H), TD05(H), TD06S20G, TD06SH20G |
Large | 2 | 11900201 | YEN 300 | T67, TD06SH25G, TD07S, T78, T88(H) |
Turbine Oil Return Flange (Material : SS)
Flange for oil return of GReddy turbine
One-off in production flange, there are two sizes fit the turbine size.
■Price List
Size | Dimension | CODE | Price (Tax excl.) | Remarks |
Small | 1 | 11900210 | YEN 1,200 | TD025、TD04(H)、TD05(H)、TD06(H) |
Large | 2 | 11900211 | YEN 1,200 | T67、TD06SH25G、TD07、T78、T88、T88H |
