GReddy Performance Damper option parts

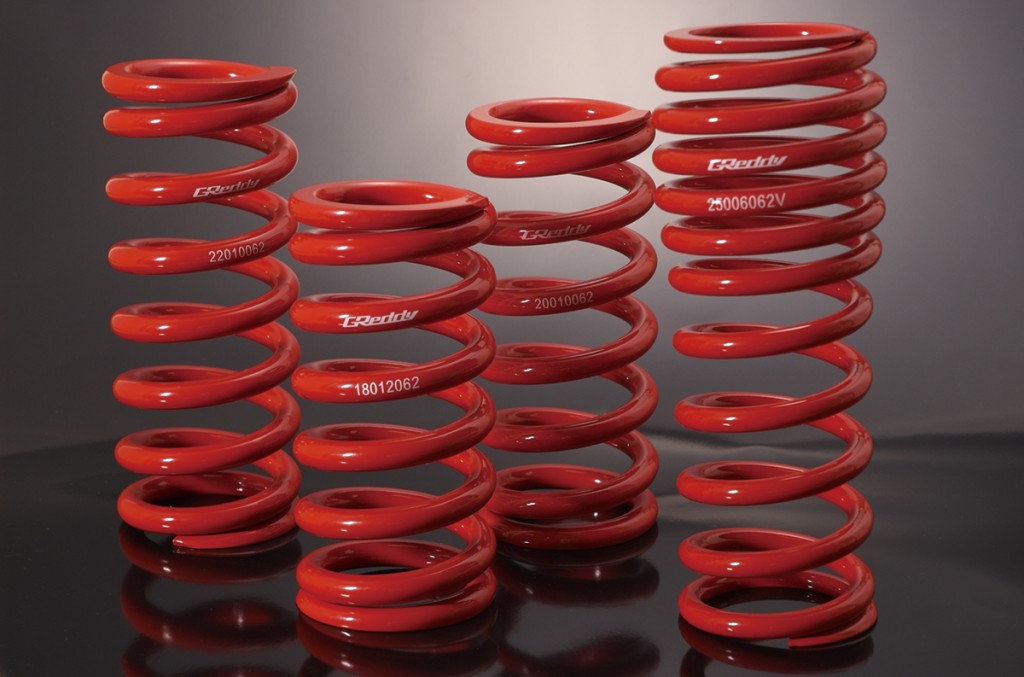

GReddy Performance Damper Type-S Option Spring
It adopts high stiffness SAE9254 that has long available stroke and durability for a sag, and optimized design enables light weight. For rear spring, 250mm Variable Spring is adopted for long rebound stroke. It prevents missing of traction from in-lift during cornering, ensuring high running performance. It is possible to obtain stable traction even in rain.
GReddy Performance Damper Type-S Front Knuckle Bracket
Version up item for Performance Damper Type-S for SWIFT SPORT. High camber angle. Front Knuckle Bracket replace part. Camber bolt is unnecessary and 3 ° negative camber is attached. Both sides included.
Adapted vehicle : Vehicle with Performance Damper SZ−PD-001
- CODE : 14491120
- PRICE : YEN 14,800 without tax
- Adapted vehicle serial number : ・ZC31S-****-0 ・ZC31S-****-1 ・ZC31S-****-2
GReddy Rear Camber Adapter
Based on the past circuit running data, developed on the assumption of time-up. Camber adjustment is possible by attaching the GReddy Camber Adapter to the torsion beam type suspension where the toe-in & camber is fixed and can not be adjusted.
- Rear camber angle : approximate -2° 30’
- Rear toe-in angle : approximate 0° 50’ (Standard : approximate -1°〜 -1°20’)
MODEL : SWIFT SPORT
- MODEL : ZC31S
- Year : 05.09〜10.09
- CODE : 14093400
- PRICE : YEN 12,380 without tax
Motor position retainer
GReddy Performance Damper Remote Control parts There is a possibility that the SA shaft rewinds in the same direction and the motor harness winds up, when adjusting the damping force with Performance Damper Remote Control KIT with the pillow ball bearing race worn out, or when under environment to do hard driving.
Adapted vehicle : Vehicle provided with front strut type Performance Damper (with upper mount).
- CODE : 14402801
- PRICE : YEN 3,000 without tax
