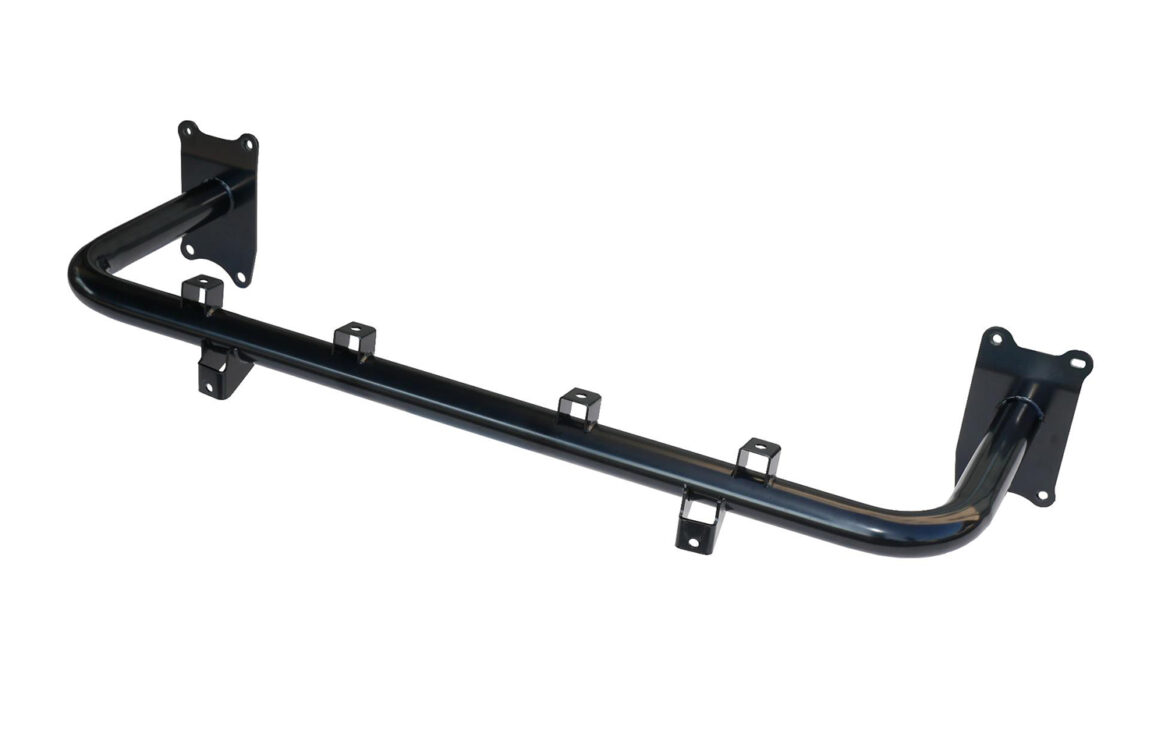

GReddy Competition Beam ZN6,ZN8/ZC6,ZD8
Cooling Performance Enhancement Item!
Product features
GReddy Competition Beam is a cooling auxiliary part that optimizes the flow of driving air and helps improve cooling efficiency around the radiator.

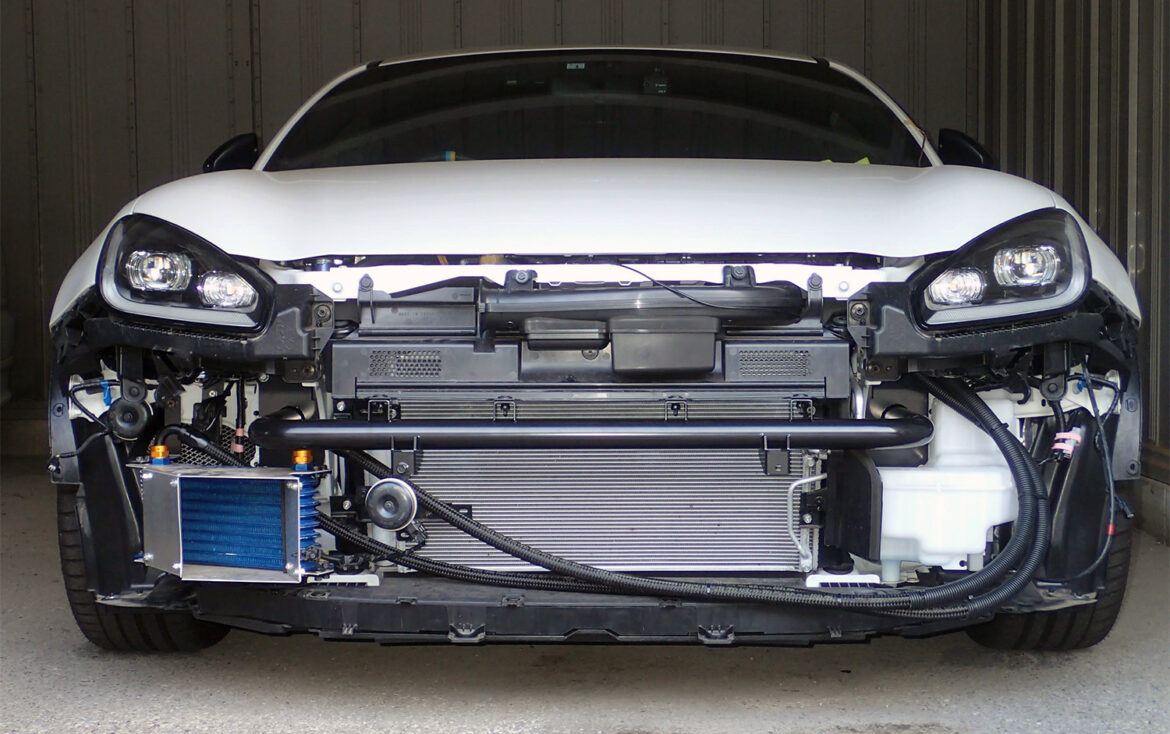

This product removes the stock reinforcement and replaces it with a competition beam to efficiently introduce driving airflow to the radiator area.
◆Even for vehicles without a turbo kit, it is expected to improve cooling efficiency and is effective for sports driving and heat control in summer.

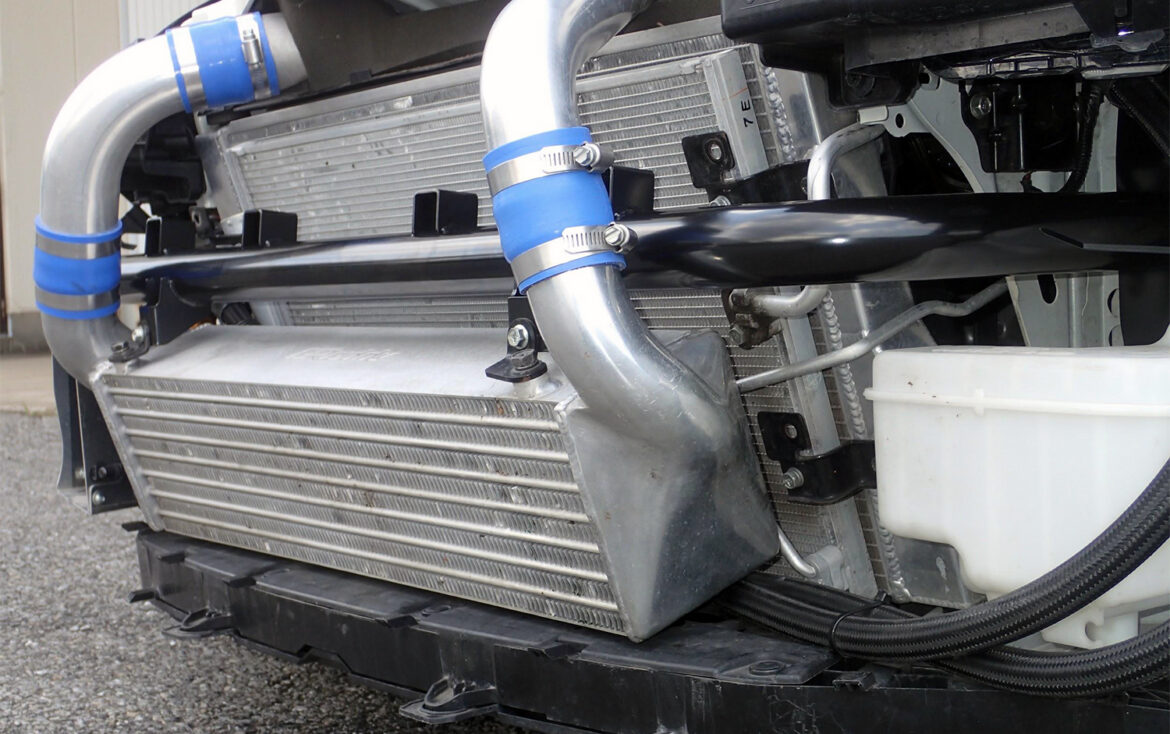

◆Furthermore, the vehicle equipped with the GReddy turbo kit has a layout where the running wind is more obstructed due to the addition of an intercooler, so the effect of this product can be experienced to a greater extent.
◆Simple pipe structure reduces weight by 2.3kg compared to the stock re-inforcement (stock 6.7kg→4.4kg)
spec
- Φ42.7 steel pipe cation coating.
- Intercooler mounting bracket included.
- Direct air intake can be installed by using an optional mounting kit.
- Oil cooler kit can be installed by using the stay set (sold separately). (ZN6/ZC6)
Cautions
Cannot be installed on vehicles equipped with ZN6/ZC6 turbo kit at the same time.
◆Tow hook, front bumper energy absorber (86), energy absorber form front (BRZ) cannot be installed.
◆Radiator grille LWR NO.1 (86) and cover intake front (BRZ) must be modified for cooling effect.
※This product is designed to replace the reinforcement SUB-ASSY (86) or beam COMPL front (BRZ). While it may structurally contribute to some improvement in chassis rigidity, it does not consider energy absorption performance (collision safety) during impact. Collision safety is not guaranteed, warranted, or ensured, so please exercise extreme caution when using on public roads.
Applicable vehicle TOYOTA 86/GR86
Vehicle model: ZN6/ZN8
Year: March 2021 – July 2021 / October 2021 and up
Cannot be installed on vehicles equipped with ZN6 / ZC6 turbo kit.
Compatible Vehicle SUBARU BRZ
Vehicle model: ZC6/ZD8
Engine model: FA24
Year: from July 2021
Cannot be installed on vehicles equipped with ZN6/ZC6 turbo kit.
Product Pricing
TRUST CODE ： 12412001
JAN CODE ： 4991995665328
Price: ¥85,000 [tax included ¥93,500] (including tax)
