The product of TRUST / GReddy brand matching to
TOYOTA 86 (ZN6) 2012/04 - 2016/07 EngineModel FA20 is displayed.
EXHAUSTS
GReddy Sports Catalyzer
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
10612002 | - | ¥242,000- | GReddy sports catalyzer Exhaust manifold | ■Number of partition : 2 Main pipe diameter : 42Φ~45Φ~50Φ~60Φ Replacement part : 1st catalyzer part (Exhaust manifold integrated) Cell dimension : 200 Material : Stainless steel (Flange part is plated) |
86(MT): Early / late fit, 4BA fit 86(AT): Early / late suitable, 4BA suitable BRZ(MT): Early / late suitable BRZ(AT): early suitable |
||
 |
10611002 | - | ¥88,000- | GReddy sports catalyzer (single unit) | This is the catalyzer part which is required to make the already released GReddy Turbo Kit Catalyzer-less and GReddy Circuit Spec Exhaust Manifold to comply with the safety standard. |
86(MT): Early / late fit, 4BA fit 86(AT): Early / late suitable, 4BA suitable BRZ(MT): Early / late suitable BRZ(AT): early suitable |
GReddy Muffler Series
| images | CODE | stock | Price with tax | Style | Spec | Remark | Drive | PIPE（φ） | TAIL（mm） | Split | 音量（dB） | Detail | Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10114300 | - | ¥203,500- | GReddy Power Extreme 3 | DBA-/4BA- OK 16/17inch OK AT/MT OK |
FR | 60 | 115 | 3 | Normal:82/82 Trust:94/94 | |||
 |
10110733 | - | ¥271,700- | GReddy COMFORTSPORTSGT Slash ver.3 | 2010 A.D. Noise Regulation [conform] |
Vehicle Emissions Control Type : DBA- / 4BA- Requires TRD Rear Bumper Spoiler and Muffler Garnish. It can also be installed the model of after m/c. *Minimum Ground Clearance : 115mm [Rear cross member lower pipe part] *Fender height : FR 660mm / FL 663mm / RR 645mm / RL 645mm GR Sport Model unconfirmed |
FR | 60-60*2 | 102w | 3 | Normal:82/82Trust:MT 94/93AT 94/92 | ||
 |
10110732 | - | ¥215,600- | GReddy COMFORTSPORTS GT Slash ver.2 | 2010 A.D. Noise Regulation [conform] |
Vehicle Emissions Control Type : DBA- / 4BA- 16 / 17 inch_all grade AT / MT *Weight Normal : 18.5kg ver.2 : 15.5kg *Minimum Ground Clearance : 140mm [Rear cross member lower pipe part] *Fender height : FR 668mm / FL 669mm / RR 680mm / RL 682mm GR Sport Model unconfirmed |
FR | 60-50*2 | 115 | 3 | Normal:82/82Trust:MT 94/95 AT 94/92 | ||
 |
10113301 | - | ¥218,900- | GReddy POWER EXTREME R | 2010 A.D. Noise Regulation [conform] |
Vehicle Emissions Control Type : DBA- / 4BA- All Grade(GR Sport NG) *Minimum Ground Clearance : 110mm [Rear cross member lower pipe part, Center silencer] *Fender height : FR 658mm / FL 661mm / RR 642mm / RL 643mm |
FR | 70-60*2 | 115 | 3 | Normal:86/86Trust:MT 90/91 AT 89/90 | ||
 |
10110731 | - | ¥124,300- | GReddy COMFORTSPORTS GT Slash | 2010 A.D. Noise Regulation [conform] |
Vehicle Emissions Control Type : DBA- All Grade OK *Minimum Ground Clearance : 165mm [Main silencer part] *Fender height : FR 668mm / FL 669mm / RR 680mm / RL 682mm GR Sport model unconfirmed |
FR | 60-60*2 | 115 | 1 | Normal:86/86Trust:MT 91/91 AT 91/89 |
GReddy Circuit Spec Front Pipe
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
10510603 | - | ¥27,500- | GReddy Circuit Spec Front Pipe(Racing use only) | For Competition |
GReddy Circuit Spec EX. Manifold
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
10510607 | - | ¥181,500- | GReddy Circuit Spec Exhaust Manifold (for competition only) | Number of divisions : 2 Main Pipe Diameter : 42Φ-45Φ-50Φ-60Φ Replacement part : Catalyst 1 (Exhaust manifold integrated) Material : Stainless steel (Flange part is plated) |
Competition-specific parts |
GReddy Catalyzer Street Pipe
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
10510604 | - | ¥18,700- | GReddy Catalyzer less pipe(Racing use only) | For CATALYZER EXHAUST MANIFOLD・T517Z/T518Z/T620Z Turbo KIT |
GReddy Over Pipe
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
10510602 | - | ¥38,500- | GReddy OverPipe | 60mm | All Models "Safety Standards" model. |
Suspension & Spring
GReddy パフォーマンスダンパー
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
14012218 | - | ¥267,300- | GReddy Suspention Kit PMD Middle Rate Version TY-PD-008M | Front Stabilizer Link attached Rear helper spring attached |
|||
|
|
14012217 | - | ¥267,300- | GReddy Suspention Kit PMD Standard Rate Version TY-PD-008 | Front Stabilizer Link attached Rear helper spring attached |
GReddy BL Comfort Spring
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
14011404 | - | ¥38,500- | GReddy BL Comfort Spring TYG104 | Spring Late(Kg):F 2.9 / R 3.7 | Down(-mm):15-20 |
ELECTRONICS
GReddy PressureAdaptor
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
11910101 | - | ¥9,680- | GReddy Pressure Adaptor | Depending on the grade, it may be necessary to process the engine cover. |
GReddy Performance ECU
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
11915012 | - | ¥107,800- | GReddy Performance ECU For T517Z TURBO KIT 86/BRZ (for replacement) | This ECU data is used when transferring the T517Z turbo kit to another vehicle. "3bar Sensor of Normal ECU Replacement Type" is not included. *Example : Porting of the turbo kit from the vehicle of before M/C to vehicle of after M/C. |
|||
|
|
11915011 | - | ¥107,800- | GReddy Performance ECU STANDARD DATA For T518Z TURBO KIT 86/BRZ (for replacement) | This ECU data is used when transferring the T518Z turbo kit to another vehicle. "3bar Sensor of Normal ECU Replacement Type" is not included. *Example : Porting of the turbo kit from the vehicle of before M/C to vehicle of after M/C. |
|||
|
|
11915008 | - | ¥140,800- | GReddy Performance ECU DATA For T517Z TURBO KIT 86/BRZ (before M/C) | For before M/C (04.2012 to 07.2016) For T517Z TURBO KIT (Normal ECU replacement type, 3bar sensor included) [No license] * For those who have already installed GReddy performance ECU once. |
|||
|
|
11915007 | - | ¥184,800- | GReddy Performance ECU DATA For T517Z TURBO KIT 86/BRZ (before M/C) | For before M/C (04.2012 to 07.2016) For T517Z TURBO KIT (Normal ECU replacement type, 3bar sensor included) |
|||
|
|
11915004 | - | ¥33,000- | GReddy Performance ECU BOOST UP DATA For T518Z TURBO KIT 86/BRZ (before M/C, after M/C) | BOOST UP DATA For T518Z TURBO KIT (Boost pressure 80.0kpa) * For those who have already installed the Standard Data of T518Z TURBO KIT. [ It is the price when you purchase the Reinforced Actuator (11511600) and PROFEC (15500214) at the same time. ] |
|||
|
|
11915003 | - | ¥49,500- | GReddy Performance ECU BOOST UP DATA For T518Z TURBO KIT 86/BRZ (before M/C, after M/C) | BOOST UP DATA For T518Z TURBO KIT (Boost pressure 80.0kpa) * For those who have already installed the Standard Data of T518Z TURBO KIT. [ It is the price when you purchase the Reinforced Actuator (11511600) at the same time. ] |
|||
|
|
11915002 | - | ¥71,500- | GReddy Performance ECU BOOST UP DATA For T518Z TURBO KIT 86/BRZ (before M/C, after M/C) | BOOST UP DATA For T518Z TURBO KIT (Boost pressure 80.0kpa) * For those who have already installed the Standard Data of T518Z TURBO KIT. |
|||
|
|
11915001 | - | ¥140,800- | GReddy Performance ECU DATA For T518Z TURBO KIT 86/BRZ (before M/C) | Standard data For before M/C (04.2012 to 07.2016) For T518Z TURBO KIT (Normal ECU replacement type, 3bar sensor included) [No license] * For those who have already installed GReddy performance ECU once. |
|||
|
|
11915000 | - | ¥184,800- | GReddy Performance ECU DATA For T518Z TURBO KIT 86/BRZ (before M/C) | Standard data For before M/C (04.2012 to 07.2016) For T518Z TURBO KIT (Normal ECU replacement type, 3bar sensor included) |
|||
|
|
15510404 | - | ¥5,500- | GReddy Performance ECU NA FULL DATA Version Up 86/BRZ (MT,AT) | [No license] *This is a service for those who want to upgrade the data already installed GReddy performance ECU data. |
Sensor attachment high mount type
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
12002802 | - | ¥13,750- | Sensor attachment high mount type |
Water Temp. adaptor
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
16401690 | - | ¥26,180- | Water Temp. adaptor | All models |
AIR FILTERS
GReddy Airinx Kit
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
12510643 | - | ¥39,380- | GReddy Airinx-Kit TY-M043 | Cleaner: AIRINX M80 [black] Air Flow Adaptor Air Guide Plate [aluminum] Accessory Parts |
*After 07/2016 Model : Only AT |
GReddy Direct Air Intake
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
12515001 | - | ¥28,600- | GReddy Direct Air Intake | Not compatible with TURBO KIT Need modify for after m/c model(86) and after E model(BRZ) |
GReddy DirectSuction
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
11910110 | - | ¥46,200- | GReddy DirectSuction | 86 : AT model only, BRZ : A - E- model only, AT model only |
TRUST AIRINX-GT
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
12512516 | - | ¥6,050- | TRUST AIRINX-GT TY-16GT | 86 : Before m/c and after m/c AT only BRZ : For A-D models and E- AT only |
COOLING PARTS
GReddy ラジエターホース
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
12013301 | - | ¥16,280- | GReddy Radiator hose kit ZN6,ZN8/ZC6,ZD8 | Genuine replacement type Black / Blue Hose band attached |
Compatible with GReddy Aluminum Radiator TW-R |
GReddy Oil Catchtank
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
13510601 | - | ¥23,980- | GReddy OIL CATCHTANK KIT |

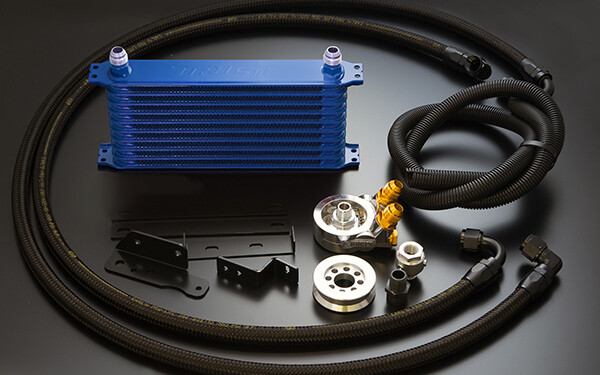

GReddy Olicooler KIT
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | CORETYPE THERMOSTAT | CORE ELEMENT | CENTER BOLT SIZE | Detail | Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
12014634 | - | ¥103,400- | GReddy Oilcooler KIT Standard Type Circuit Spec | Circuit Spec 10Row |
86/BRZ Before M/C Models only Need 3/4-16 UNF Oil Filter(GReddy:OX-01/OX-02/OX-03) for M20xP1.5 Center Bolt Engine GReddy Oil Cooler sensor terminal attached Buffle Plate included |
10Row Built In | Right/Radiator - | CenterBoltSize:M20*P1.5 | ||
 |
12014633 | - | ¥91,300- | GReddy Oilcooler KIT Standard Type | 10Row | 86 : Before m/c (MT and AT), BRZ : A-D model (MT and AT) -Need 3/4-16 UNF Oil Filter(GReddy:OX-01/OX-02/OX-03) for M20xP1.5 Center Bolt Engine GReddy Oil Cooler sensor terminal/Nilon mesh hose included |
10Row Built In | Right/Radiator - | CenterBoltSize:M20×P1.5 | ||
 |
12410100 | - | ¥14,080- | GReddy Oilcooler KIT Air Guide | Buffle Plate for ZN6/ZC6 Oil Cooler KIT(code : 12014633) with standard type for ZC6(code : 12014637) Ver up to Circuit Spec |
GReddy Radiator TWR
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
 |
12013803 | - | ¥59,400- | GReddy Aluminum Radiator TW-R | 36mm | MT/AT No Radiator cap |
TURBO
GReddy ブローオフバルブ FV2車種別キット
| images | CODE | stock | Price with tax | Product Name | Spec | Remark | Detail | Feature |
|---|---|---|---|---|---|---|---|---|
